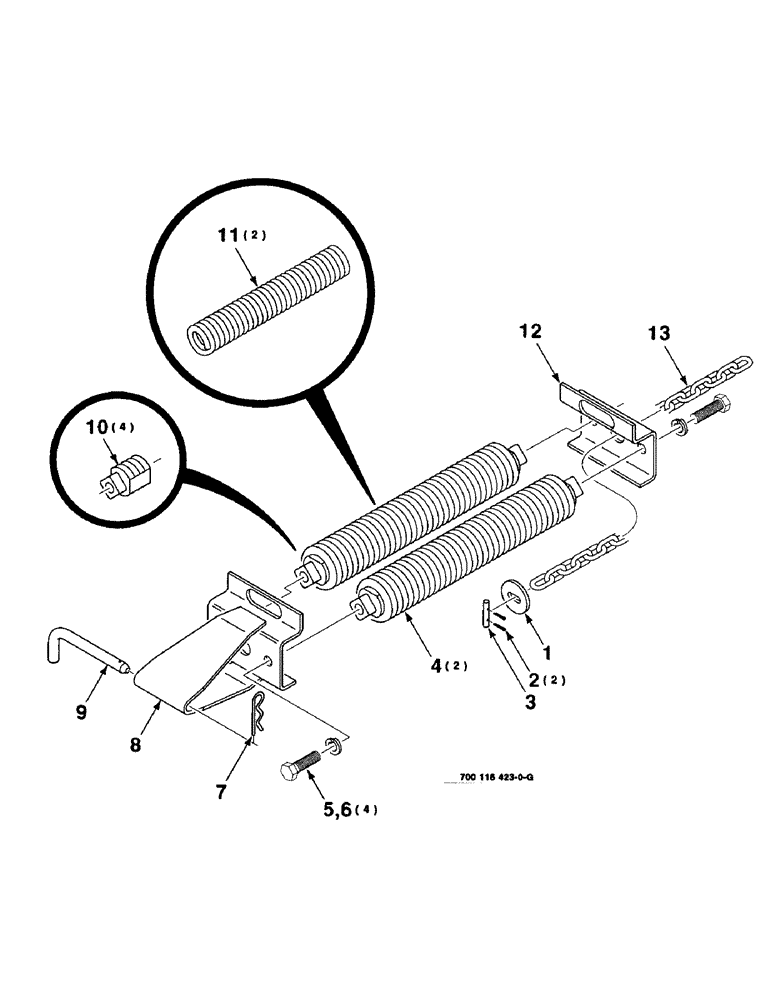

Запчасти Case IH 8820 (7-04) - FLOTATION SPRING ASSEMBLY, LEFT AND RIGHT (09) - CHASSIS

1

700116424

WASHER

WASHER - lock

1шт.

2

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

3

700116425

PIN

- retainer, chain

1шт.

4

428433

SPRING

ASM. (Includes items 10 & 11)

2шт.

5

8701518

BOLT,3/4" - 10 x 2 1/2mm, Gr 5

3/4-10 X 2-1/2 FTC

4шт.

6

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

7

T54573

PIN

.125 X 2-1/2 HAIRPIN COTTER

1шт.

8

700116431

SUPPORT

- spring, front

1шт.

9

700116361

PIN

- flotation, front

1шт.

10

378778

SPRING

PLUG - spring

4шт.

11

758227

SPRING

2шт.

12

700116430

SUPPORT

- spring, rear

1шт.

13

700116454

CHAIN

- adjustment

1шт.
