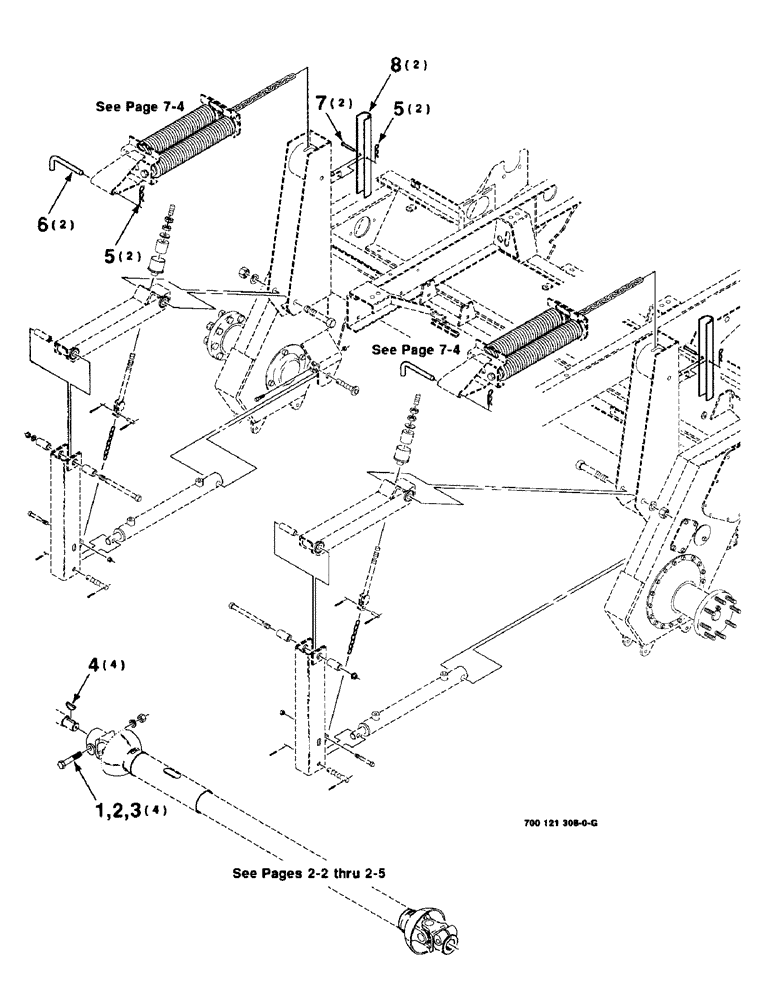

Запчасти Case IH 8820 (7-02) - HEADER LINKAGE AND SAFETY STOP ASSEMBLY (09) - CHASSIS

1

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

4шт.

2

492-11038

LOCK WASHER,3/8"

4шт.

3

425-106

NUT,3/8"-16, Cl 5

4шт.

4

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

4шт.

5

T54573

PIN

.125 X 2-1/2 HAIRPIN COTTER

4шт.

6

700116361

PIN

2шт.

7

CAS763706

PIN

5/16 X 2-3/8 CLEVIS PIN

2шт.
