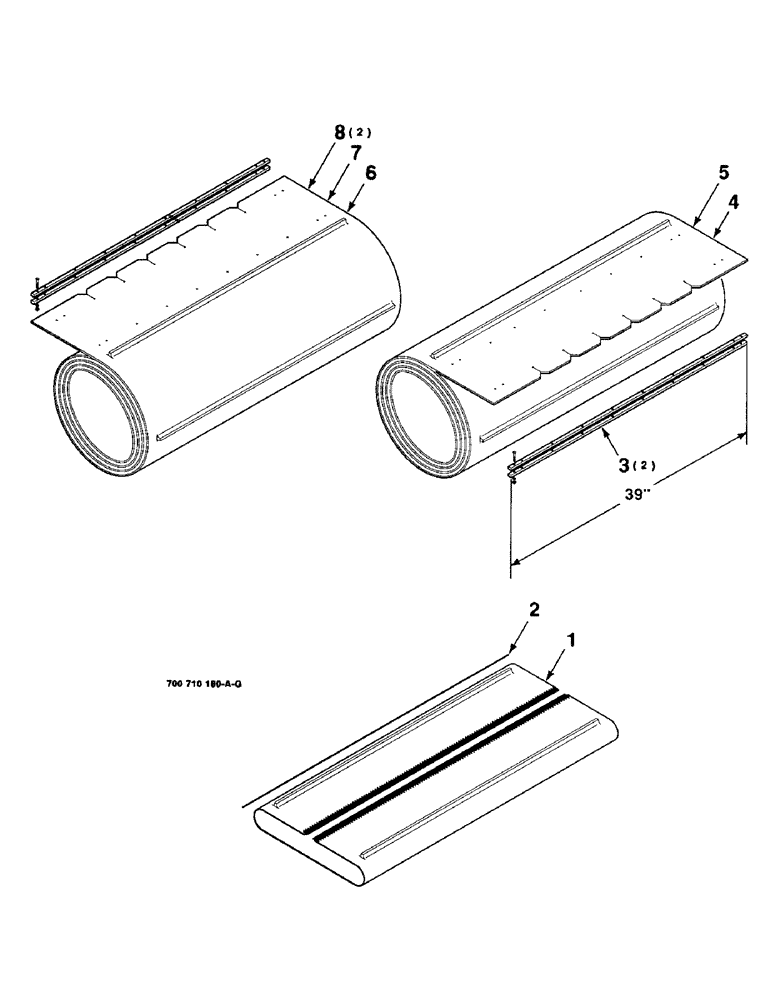

Запчасти Case IH 8820 (6-26) - DRAPERS, ALL HEADER LENGTHS, SERIAL NUMBER CFH0050001 THRU CFH0050295 (09) - CHASSIS

1

700706858

DRAPER

- mini (25 and 30 foot)

1шт.

700711197

BELT,987.00 mm W x 1066.80 mm L

Draper, Mini 987.00 mm W x 1066.80 mm L

1шт.

2

700713359

PIN

- lacing

1шт.

3

1700145

COUPLING

COUPLER - draper

2шт.

4

700710183

CURTAIN

DRAPER - left (30 foot)

1шт.

5

700710181

CURTAIN

DRAPER - left (25 foot)

1шт.

6

700710184

CONVEYOR

DRAPER - right (30 foot)

1шт.

7

700710182

CURTAIN

DRAPER - right (25 foot)

1шт.

8

700710180

CONVEYOR ASSY.

DRAPER - left and right (21 foot)

2шт.
