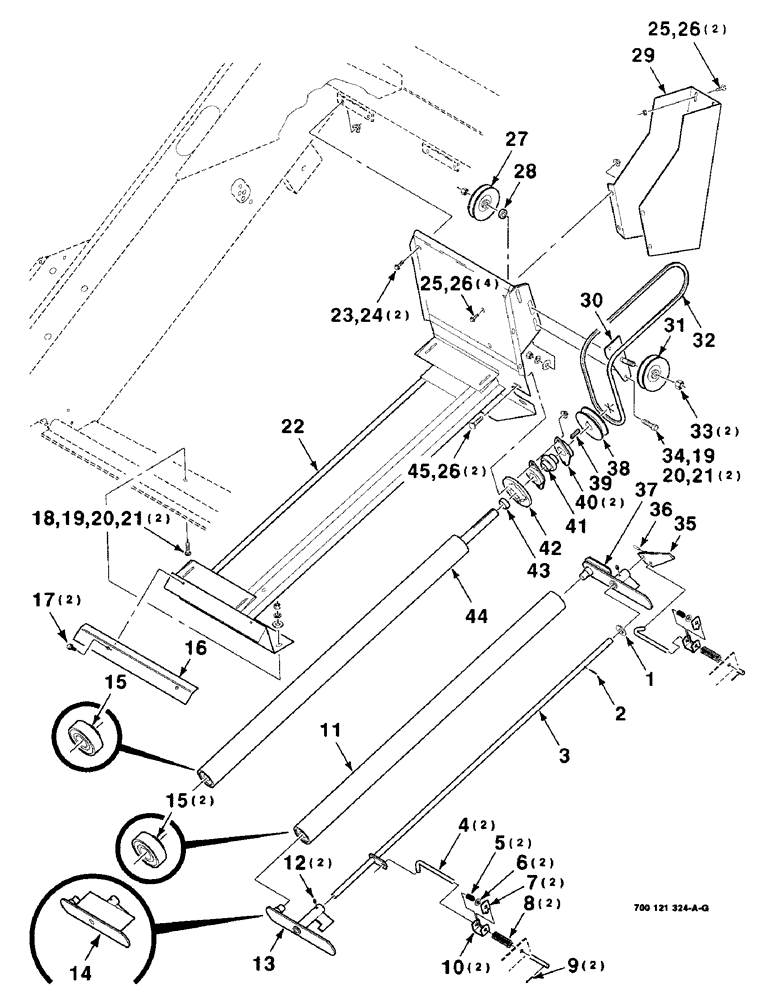

Запчасти Case IH 8820 (6-24) - DRAPER END ASSEMBLY, 25 AND 30 FOOT, MINI DRAPER (09) - CHASSIS

1

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

2

62224

PIN, SPLIT (COTTER)

3/16 X 1 COTTER PIN

1шт.

3

700116419

ROD

- draper

1шт.

700121254

SHAFT

ROD - draper

1шт.

4

700115403

ROD

- link

2шт.

5

700703267

COMPRESSION SPRING

SPRING - compression

2шт.

6

95-81100

WASHER,33/64" x 7/8" x .049"

1/2-18 GAUGE MACHINERY BUSHING

2шт.

7

700121229

LOCK

TAB

2шт.

8

58685

SPRING

- compression

2шт.

9

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

10

700121227

CLIP

2шт.

11

700115392

ROLLER

- draper, outer (Includes item 15)

1шт.

12

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

13

700115377

ARM

- draper, right front (25 foot CFH0050001 thru CFH0050871)

1шт.

14

700130406

ARM

WA - right, front (25 ft. CFH0050872 and later) (30 ft. CFH0050872 and later)

1шт.

15

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - sealed

3шт.

16

700130826

ANGLE

1шт.

17

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

2шт.

18

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

22

700116408

FRAME

- draper, mini

1шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

24

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

25

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

27

51200833

PULLEY

V-IDLER

1шт.

28

6108922

SPACER

1шт.

29

700115405

SHIELD

- belt, mini drive

1шт.

30

700115389

SUPPORT

- idler

1шт.

31

559168R91

PTO

IDLER - flat

1шт.

32

700707578

V-BELT,1480.00 mm L

1шт.

33

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

34

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

35

700121317

ARM

1шт.

36

38-11216

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

37

700115382

ARM

- draper, right rear

1шт.

38

7053622

PULLEY

SHEAVE - drive, roller

1шт.

39

T13450

KEY

1/4 X 1/4 X 1-1/4 KEY

1шт.

40

50591

FLANGE,52mm

- bearing

2шт.

41

666589R91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - spherical

1шт.

42

425306

SPACER

- ring

1шт.

43

483529

SPACER

1шт.

44

700115395

ROLLER

- end, draper (Includes item 15)

1шт.

45

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.
