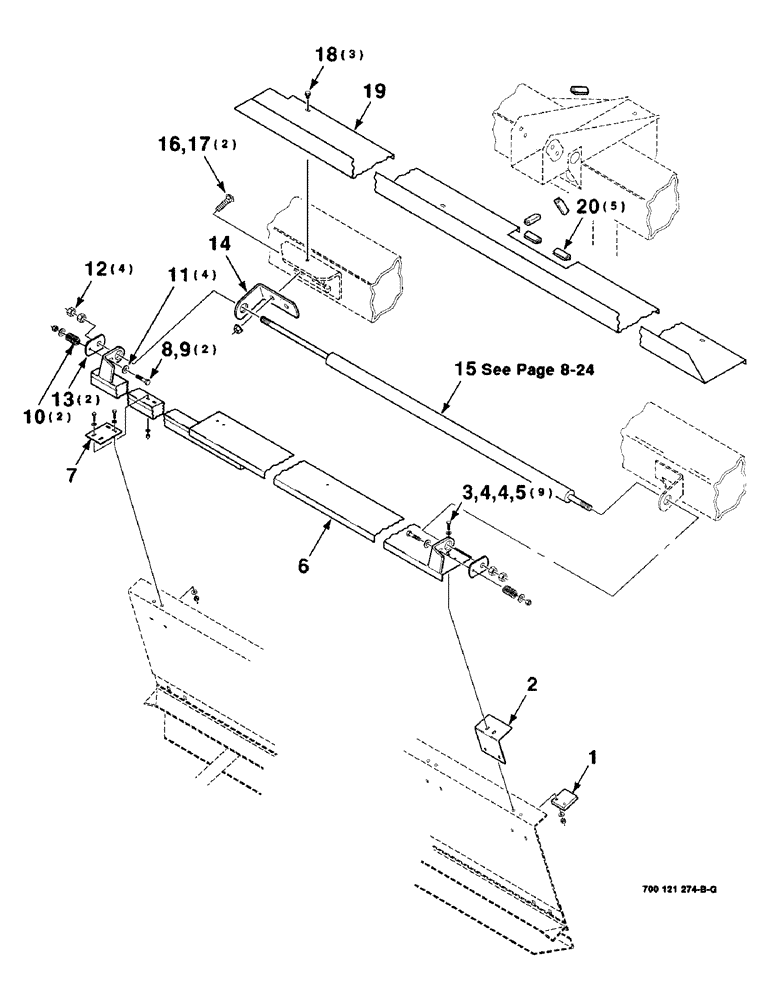

Запчасти Case IH 8820 (6-20) - DRAPER SHIFTER ASSEMBLY, 25 FOOT, CYLINDER MOUNTING (09) - CHASSIS

1

700115400

BAR PLATE

BEARING

1шт.

2

700121314

ANGLE

- reinforcement

1шт.

3

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

9шт.

4

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

18шт.

5

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

9шт.

6

700121241

ANGLE

MOUNTING - cylinder, hydraulic

1шт.

7

700121307

PLATE

1шт.

8

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

9

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

2шт.

10

700708573

COMPRESSION SPRING

SPRING - compression

2шт.

11

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

13

700115411

CLIP

2шт.

14

700118839

SUPPORT

- cylinder, hydraulic

1шт.

15

700708197

HYDRAULIC CYLINDER

CYLINDER - hydraulic complete

1шт.

16

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

18

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

19

700121245

SHIELD

- cylinder, hydraulic

1шт.

20

700118848

ADHESIVE STRIP

TRIM - rubber

5шт.
