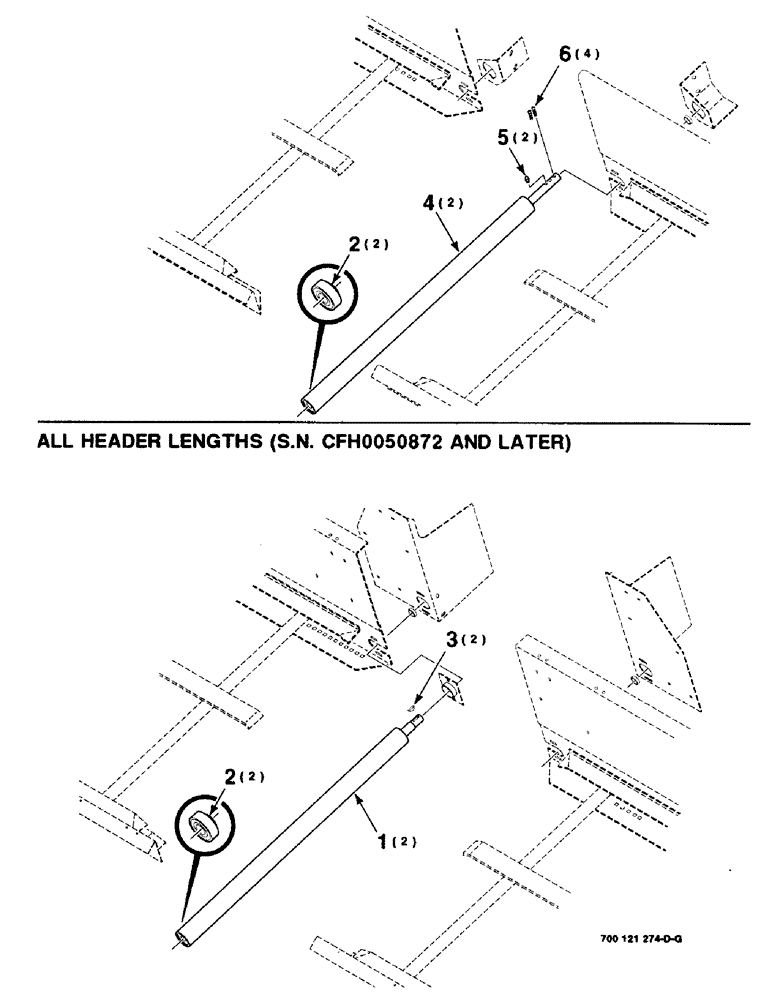

Запчасти Case IH 8820 (6-16) - DRAPER ROLLER ASSEMBLY, CENTER, ALL HEADER LENGTHS, SERIAL NUMBER CFH0050001 THRU CFH0050871 (09) - CHASSIS

1

700130416

ROLLER

ASSEMBLY - drive (Includes item 2)

2шт.

2

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - sealed

4шт.

3

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

4

700121235

ROLLER

ASSEMBLY - drive (Includes item 2) (Replaces 700115383)

2шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

6

700707577

SET SCREW

1/4-20 X 3/8 HDPHSSS

4шт.
