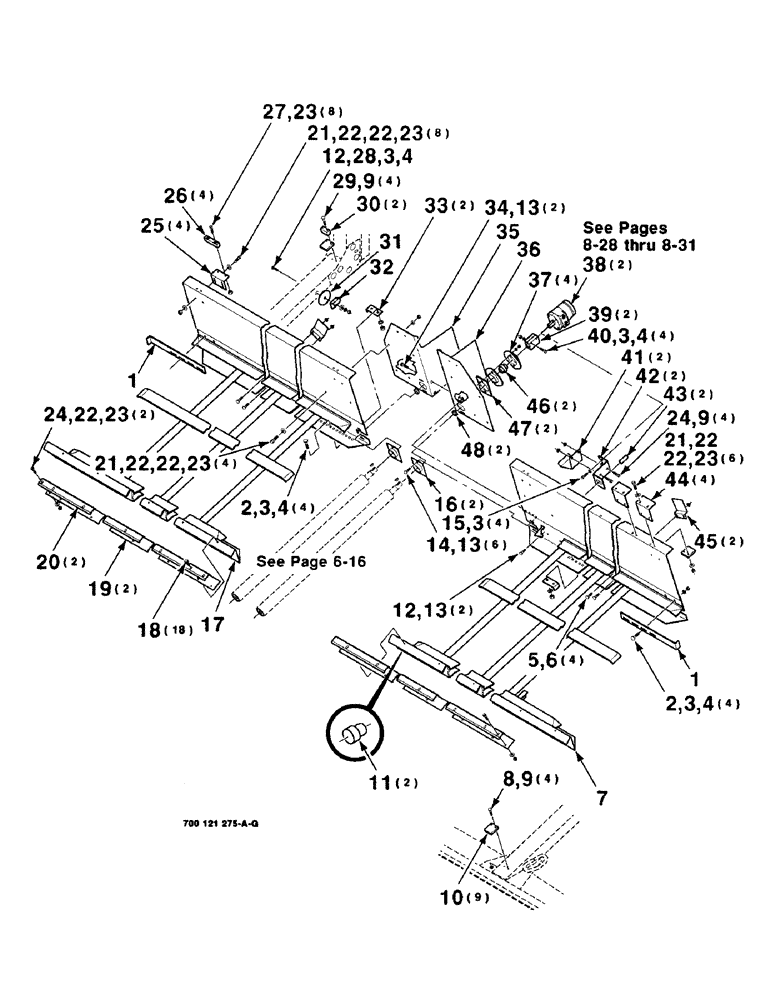

Запчасти Case IH 8820 (6-02) - DRAPER FRAME AND CENTER ROLLER DRIVE ASSEMBLY, 21 FOOT, SERIAL NUMBER CFH0050001 THRU CFH0118075 (09) - CHASSIS

1

700116990

BRACKET

ANGLE

2шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

3

492-11038

LOCK WASHER,3/8"

17шт.

4

425-106

NUT,3/8"-16, Cl 5

13шт.

5

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

7

700121333

FRAME

WA - draper, left (Includes item 11)

1шт.

8

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1/4-20 X 1 RHSNB

4шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

12шт.

10

700115400

BAR PLATE

BEARING

9шт.

11

700107939

SPINDLE

2шт.

12

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

3шт.

13

231-5146

FLANGE NUT,3/8"-16

10шт.

14

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

6шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

16

700127768

FLANGE

RING - grass

2шт.

17

700121325

FRAME

WA - draper, right (Includes item 11)

1шт.

18

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS (S.N.CFH0050128 AND LATER)

18шт.

19

700129115

RETAINER

(S.N.CFH0050128 AND LATER)

2шт.

20

700129113

GUARD

(S.N. CFH0050128 AND LATER)

2шт.

21

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

18шт.

22

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

38шт.

23

23-4114

1/4-20 HTLN GR/B

28шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

25

700121323

ANGLE

BRACKET

4шт.

26

700121313

SLIDE

GUIDE

4шт.

27

7883291

SCREW,Hex Washer, 1/4" - 20 x 1 1/4"

1/4-20 X 1-1/4 HWHMS

8шт.

28

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

29

433-432

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2", Gr 5

1/4-20 X 2 RHSNB

4шт.

30

700129136

BLOCK

- nylon

2шт.

31

6835979

WASHER

1шт.

32

700115364

RETAINER

1шт.

33

700121233

STOP

2шт.

34

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

35

700121253

ANGLE

- right

1шт.

36

700121312

ANGLE

- left

1шт.

37

581469R1

FLANGE,Bearing

4шт.

38

700709796

MOTOR

ASM. - hyd. (S.N.CFH0050001 thru CFH0050127)

2шт.

700712805

MOTOR

ASM. - hyd. (S.N. CFH0050128 and later)

2шт.

39

700121226

COUPLING,25.41mm ID x 70mm L

COUPLER

2шт.

40

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

41

700127769

SHIELD

- coupler

2шт.

42

700121240

BRACKET

SUPPORT - motor

2шт.

43

6869382

SPACER

2шт.

44

700121314

ANGLE

4шт.

45

700121174

BRACKET

- hose

2шт.

46

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- spherical

2шт.

47

700121234

SPACER

2шт.

48

311795

TUBE

SPACER

2шт.
