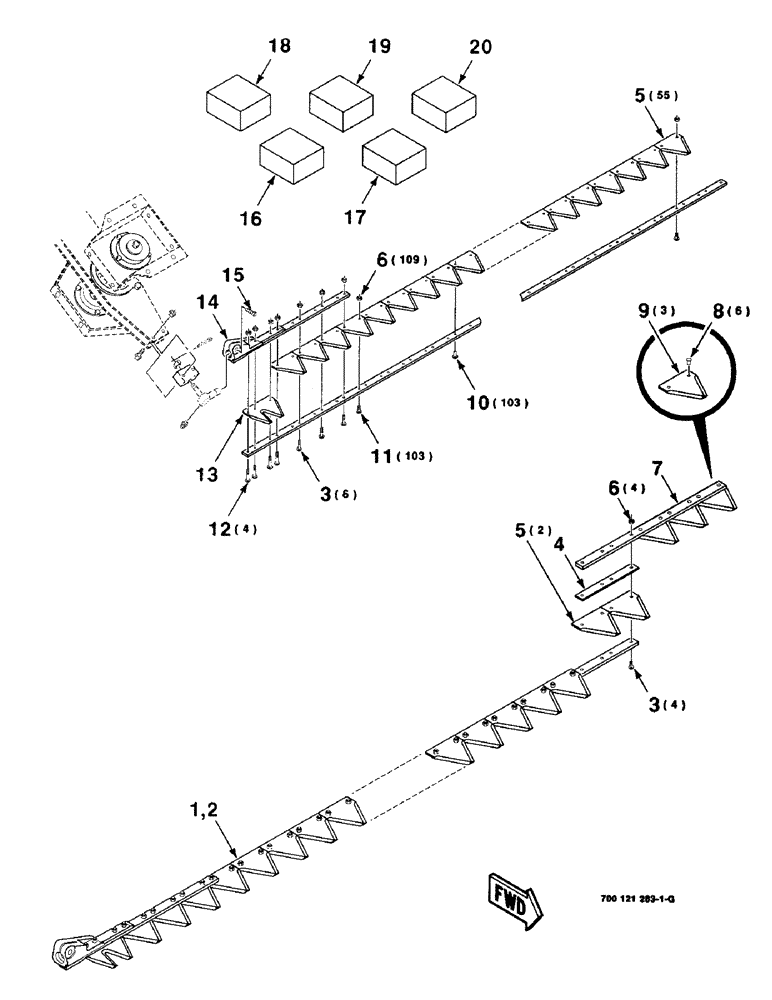

Запчасти Case IH 8820 (5-30) - SICKLE ASSEMBLY, RIGHT, 30 FOOT (09) - CHASSIS

1

700709655

KNIFE ASSY

SICKLE ASSEMBLY - right, complete (Bolt-on)

1шт.

2

700116708

KNIFE

SICKLE ASSEMBLY - right, complete (Riveted)

1шт.

3

700705519

RIVET

#12-24 X 1 BOLT (ORDER ITEM 19)

10шт.

4

700116713

SPACER

- sickle bar

1шт.

5

49254

KNIFE SECTION

SECTION - sickle, top serrated (Packaged 25 per box)

57шт.

6

1954816C1

LOCK NUT

#12-24 LOCKNUT (PACKAGED WITH BOLTS)

113шт.

7

700709645

KNIFE

SICKLE - extension (Includes items 8 & 9)

1шт.

For assembly that includes extension bar and 3 bolted on sections, order P/N 700715804.

1шт.

8

64469

RIVET,Oval Hd, .211" x 7/16"

#5-1/2 X 7/16 OVAL HEAD RIVET (ORDER ITEM 16)

6шт.

Section and Rivet-Newer heads have bolt on sections all the way across. The overlap section of the sickle bar uses allen head bolts that are countersunk. The bolt and nut package is P/N 700715160 which is a box of 25. Order quantity 1 to get a box of 25.

1шт.

9

748210

KNIFE SECTION

SECTION - sickle, top serrated

3шт.

Section and Rivet-Newer heads have bolt on sections all the way across. The overlap section of the sickle bar uses allen head bolts that are countersunk. The bolt and nut package is P/N 700715160 which is a box of 25. Order quantity 1 to get a box of 25.

1шт.

748210 sickle section. This part comes from production w/countersunk rivet. per hfi engr the sickle section vendor has a machine that can apply this rivet in prod. but for service, there probably is not a machine out in the field to do this, and normal field installation of the rivet laying loose in the countersunk hole when it is peened from the opposite side. For field repairs, engineer wants to use the oval head rivet and peen the rivet into the countersunk hole which will result in a secure file, per qu

1шт.

10

990817R91

RIVET

#5-1/2 X 9/16 OVAL HEAD RIVET (ORDER ITEM 17)

103шт.

11

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 X 5/8 BOLT (ORDER ITEM 18)

103шт.

12

700705520

RIVET

#12-24 X 1-1/4 BOLT (ORDER ITEM 20)

4шт.

13

700705463

KNIFE SECTION

SECTION - double end

1шт.

14

700116709

KNIFE HEAD

SICKLE HEAD WA

1шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

16

64923

RIVET

#5-1/2 X 7/16 OVAL HEAD RIVET (1 POIUN BOX)

1шт.

17

990817R91

RIVET

#5-1/2 X 9/16 OVAL HEAD RIVET (1 POUND BOX)

1шт.

18

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT & LOCKNUT (PACKAGED 50 PER BOX)

1шт.

19

700705297

KIT

#12-24 X 1 BOLT, locknut & hex washer (Packaged 25 per box)

1шт.

20

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT & LOCKNUT (PACKAGED 25 PER BOX)

1шт.
