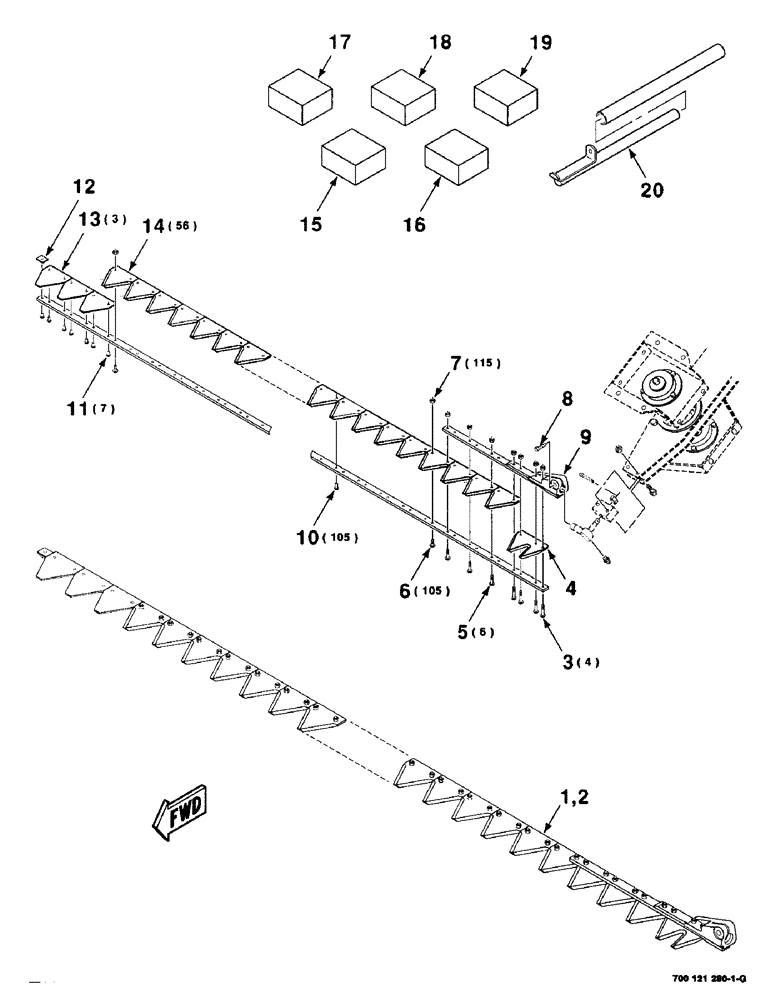

Запчасти Case IH 8820 (5-24) - SICKLE ASSEMBLY, LEFT, 30 FOOT (09) - CHASSIS

1

700709654

CUTTER BAR

SICKLE ASSEMBLY - left complete (Bolt-on)

1шт.

2

700116714

KNIFE

SICKLE ASSEMBLY - left, complete (Riveted)

1шт.

3

700705520

RIVET

#12-24 X 1-1/4 BOLT (ORDER ITEM 19)

4шт.

4

700705462

KNIFE SECTION

SECTION - double end

1шт.

5

700705519

RIVET

#12-24 X 1 BOLT (ORDER ITEM 18)

6шт.

6

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 X 5/8 BOLT (ORDER ITEM 17)

105шт.

7

1954816C1

LOCK NUT

#12-24 LOCKNUT (PACKAGED WITH BOLTS)

115шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

9

700111003

KNIFE HEAD

SICKLE HEAD WA

1шт.

10

990817R91

RIVET

#5-1/2 X 9/16 OVAL HEAD RIVET (ORDER ITEM 16)

105шт.

11

64469

RIVET,Oval Hd, .211" x 7/16"

#5-12 X 7/16 OVAL HEAD RIVET (ORDER ITEM 15)

7шт.

Section and Rivet-Newer heads have bolt on sections all the way across. The overlap section of the sickle bar uses allen head bolts that are countersunk. The bolt and nut package is P/N 700715160 which is a box of 25. Order quantity 1 to get a box of 25.

1шт.

12

6821052

SHIM

1шт.

13

748152

KNIFE SECTION

SECTION - sickle, side serrated

3шт.

Section and Rivet-Newer heads have bolt on sections all the way across. The overlap section of the sickle bar uses allen head bolts that are countersunk. The bolt and nut package is P/N 700715160 which is a box of 25. Order quantity 1 to get a box of 25.

1шт.

14

NLS

NO LONGER SERVICED

SECTION - sickle, top serrated (Packaged 25 per box)

56шт.

15

64923

RIVET

#5-1/2 X 7/16 OVAL HEAD RIVET (1 POUND BOX)

1шт.

16

990817R91

RIVET

#5-1/2 X 9/16 OVAL HEAD RIVET (1 POUND BOX)

1шт.

17

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT & LOCKNUT (PACKAGED 50 PER BOX)

1шт.

18

700705297

KIT

#12-24 X 1 BOLT, LOCKNUT & HEX WASHER (PACKAGED 25 PER BOX)

1шт.

19

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT & LOCKNUT (PACKAGED 50 PER BOX)

1шт.

20

6165401

GUARD

STRAIGHTENER - guard

1шт.
