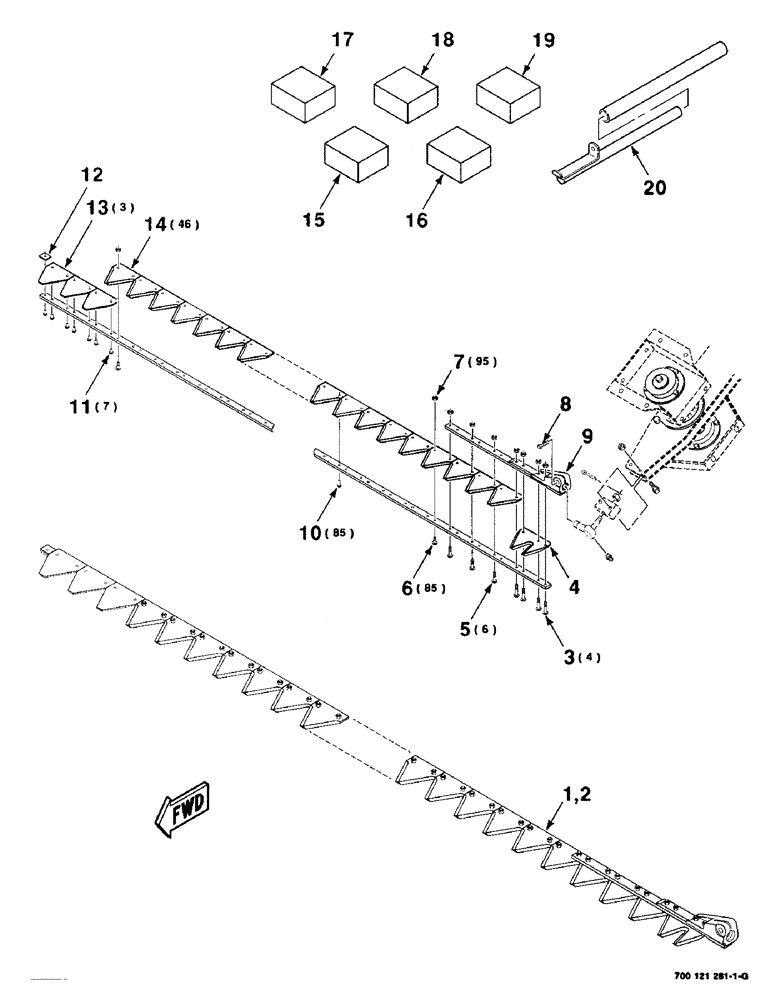

Запчасти Case IH 8820 (5-22) - SICKLE ASSEMBLY, LEFT, 25 FOOT (09) - CHASSIS

1

700709652

TOOL

SICKLE ASSEMBLY - left complete (Bolt-on)

1шт.

2

700116732

KNIFE

SICKLE ASSEMBLY - left, complete (Riveted)

1шт.

3

700705520

RIVET

#12-24 X 1-1/4 BOLT (ORDER ITEM 19)

4шт.

4

700705462

KNIFE SECTION

SECTION - double end

1шт.

5

700705519

RIVET

#12-24 X 1 BOLT (ORDER ITEM 18)

6шт.

6

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 X 5/8 BOLT (ORDER ITEM 17)

85шт.

7

1954816C1

LOCK NUT

#12-24 LOCKNUT (PACKAGED WITH BOLTS)

95шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

Section and Rivet-Newer heads have bolt on sections all the way across. The overlap section of the sickle bar uses allen head bolts that are countersunk. The bolt and nut package is P/N 700715160 which is a box of 25. Order quantity 1 to get a box of 25.

1шт.

9

70011103

SICKLE HEAD WA

1шт.

Section and Rivet-Newer heads have bolt on sections all the way across. The overlap section of the sickle bar uses allen head bolts that are countersunk. The bolt and nut package is P/N 700715160 which is a box of 25. Order quantity 1 to get a box of 25.

1шт.

10

990817R91

RIVET

#5-1/2 X 9/16 OVAL HEAD RIVET (ORDER ITEM 16)

85шт.

11

64469

RIVET,Oval Hd, .211" x 7/16"

#5-1/2 X 7/16 OVAL HEAD RIVET (ORDER ITEM 15)

7шт.

#11 counter sunk bolt p/n 700715160 if bolt on unit. 25 pkg qty. overlap extension p/n 700715804 if rivit and want to chang to bolt, If rivet need to order part and pein rivet for tight fit

1шт.

12

6821052

SHIM

1шт.

13

V94766

SPARE PART

SECTION - sickle, side serrated

3шт.

14

49254

KNIFE SECTION

SECTION - sickle, top serrated (Packaged 25 per box)

46шт.

15

64923

RIVET

#5-1/2 X 7/16 OVAL HEAD RIVET (1 POUND BOX)

1шт.

16

990817R91

RIVET

#5-1/2 X 9/16 OVAL HEAD RIVET (1 POIUND BOX)

1шт.

17

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT & LOCKNUT (PACKAGED 50 PER BOX)

1шт.

18

700705297

KIT

#12-24 X 1 BOLT, LOCKNUT & HEX WASHER (PACKAGED 25 PER BOX)

1шт.

19

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT & LOCKNUT (PACKAGED 50 PER BOX)

1шт.

20

6165401

GUARD

STRAIGHTENER - guard

1шт.
