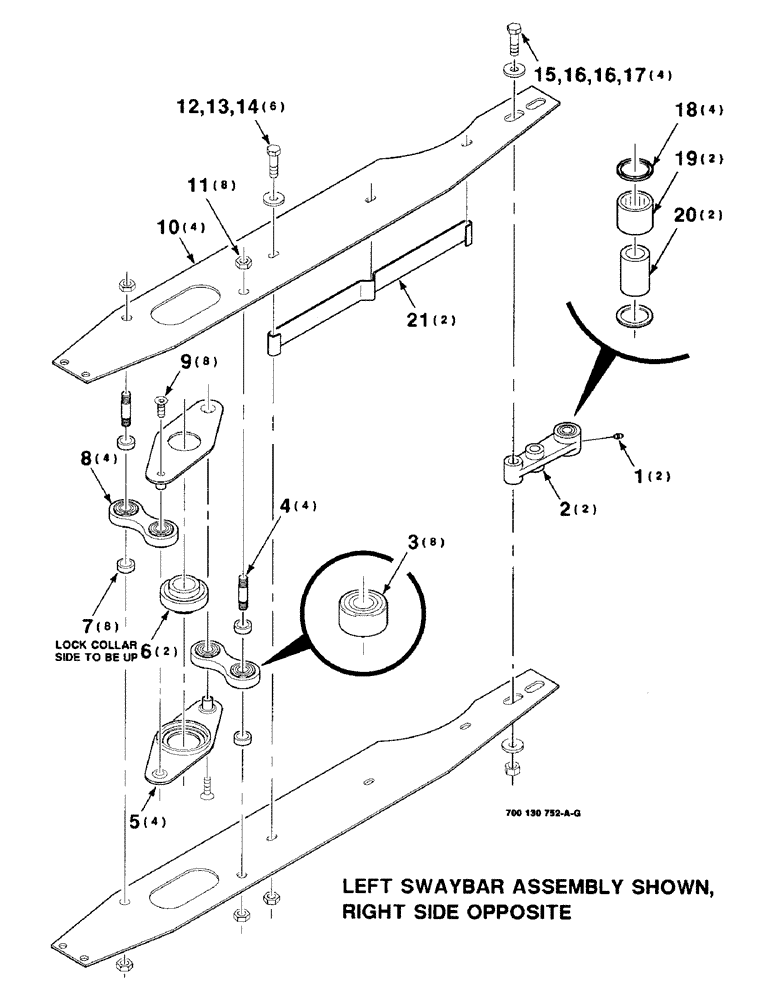

Запчасти Case IH 8820 (5-16) - SWAYBAR ASSEMBLY, HEAVY DUTY, ALL HEADER LENGTHS, SERIAL NUMBER CFH0050872 AND LATER (09) - CHASSIS

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

2

700114625

LINK

ASM. (INCLUDES ITEMS 1, 18, 19 & 20)

2шт.

3

7714629

BALL BEARING,17mm ID x 40mm OD x 20.64mm W

BEARING - cylindrical

8шт.

4

700130762

PIN,16.99mm OD x 71mm L

4шт.

5

700130755

LARGE PLATE

PLATE - pivot

4шт.

6

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING - cylindrical

2шт.

7

700114633

SPACER

8шт.

8

700114630

LINK ASSY.

LINK ASSEMBLY - pivot (Includes item 3)

4шт.

9

164-130

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 1/4"

1/2-13 X 1-1/4 HSFCHCS

8шт.

10

700127798

LARGE PLATE

PLATE - swaybar

4шт.

11

329-1410

JAM NUT,Jam, 5/8"-11, G8

8шт.

12

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

6шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

15

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

4шт.

16

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

8шт.

17

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

4шт.

18

697494R91

OIL SEAL

SEAL

4шт.

19

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

2шт.

20

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

- needle

2шт.

21

700121349

LARGE PLATE

SPACER

2шт.
