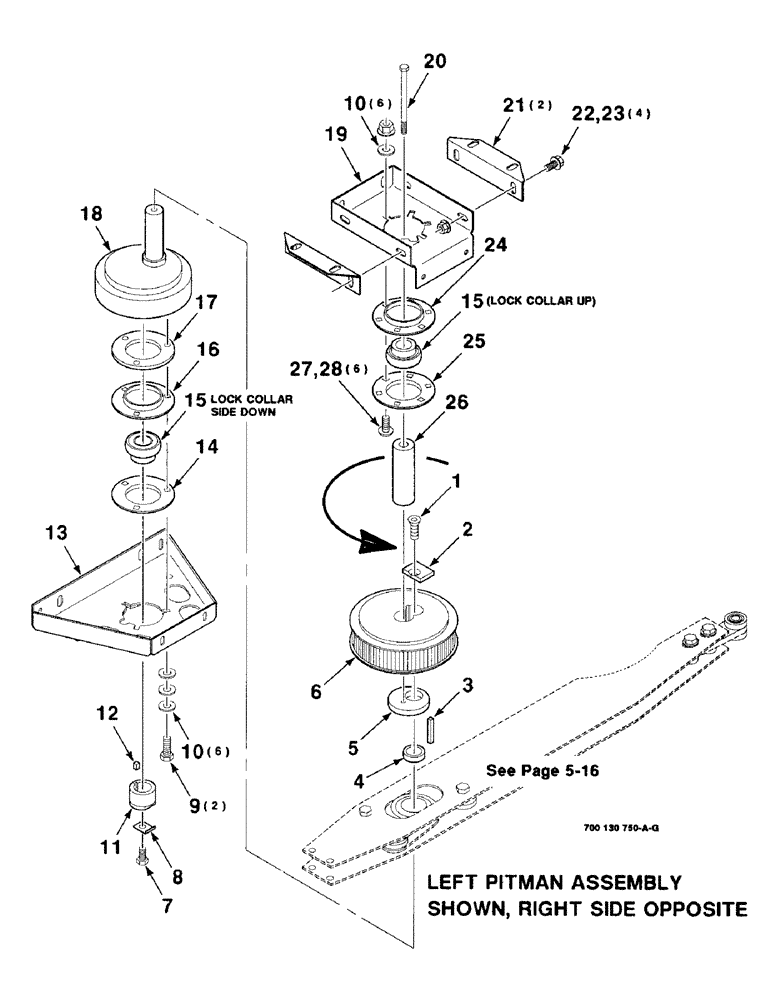

Запчасти Case IH 8820 (5-12) - PITMAN ASSEMBLY, LEFT AND RIGHT, HEAVY DUTY, 700130795 SWAYBAR ASSEMBLY COMPLETE, LEFT (09) - CHASSIS

700130795

KIT

SWAYBAR ASSEMBLY COMPLETE - left

1шт.

700130796

KIT

SWAYBAR ASSEMBLY COMPLETE - right

1шт.

1

164-130

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 1/4"

1/2-20 X 1-1/4 HSFCHCS SPL

1шт.

2

700130766

RETAINER

1шт.

3

457400R1

KEY,5/16" Sq x 1 3/4", Par

5/16 X 1-3/4 KEY

1шт.

4

700130767

SPACER

1шт.

5

700130768

LARGE PLATE

PLATE - nut

1шт.

6

700714165

FLYWHEEL

- cog

1шт.

7

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

1шт.

8

700129104

RETAINER

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

49611041

3/8 HARDENED PLAIN WASHER

12шт.

11

700129109

TUBE

WA

1шт.

12

700129111

KEY

5/16 X 1/2 KEY

1шт.

13

700130756

MOUNTING PARTS

MOUNTING WA - bearing

1шт.

14

700710412

FLANGE

- zerk

1шт.

15

470597R91

BEARING, BALL,1.25" ID x 72 mm OD x 2.0156"

BEARING - spherical

2шт.

16

700710411

FLANGE

1шт.

17

700120722

RING

1шт.

18

700130763

CRANK

1шт.

19

700130797

SUPPORT

- bearing

1шт.

20

114-264

BOLT,Hex, 3/8" - 24 x 5-1/2", Gr 8

3/8-24 X 5-1/2 C GR8 NP

1шт.

21

700130761

ANGLE

2шт.

22

121-425

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

4шт.

23

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

24

51200267

FLANGE

- zerk

1шт.

25

711440

FLANGE

1шт.

26

700130764

SHAFT

1шт.

27

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

28

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

6шт.
