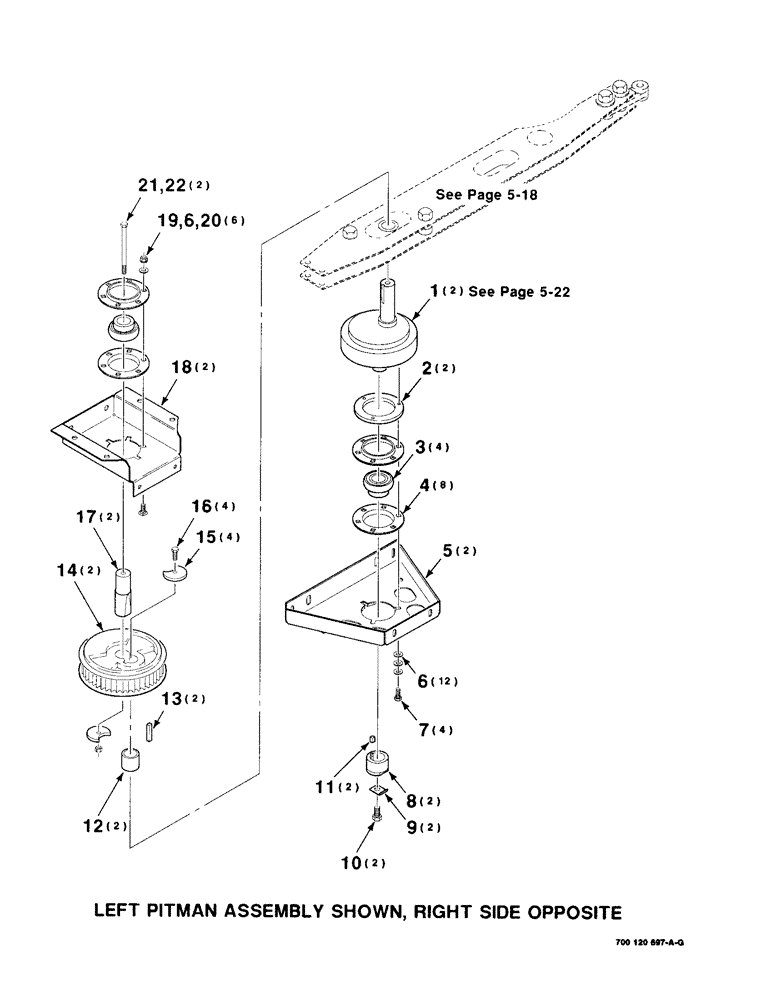

Запчасти Case IH 8820 (5-10) - PITMAN ASSEMBLY, ALL HEADER LENGTHS, SERIAL NUMBER CFH0050001 THRU CFH0050871 (09) - CHASSIS

1

700120699

ECCENTRIC

CRANK SUPERSEDED BY 700127783

2шт.

Ref #1 Parts included in kit are listed on page 5-18 TGS BT 6/18/97

1шт.

700127783

KIT

SICKLE CRANK REPAIR KIT

2шт.

700127777

CRANK

NEW

2шт.

2

700120722

RING

2шт.

3

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

4шт.

4

825620C1

RETAINER

- bearing

8шт.

5

700120702

SUPPORT

MOUNTING WA - bearing

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

18шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

6206452

SPACER

2шт.

700129109

TUBE

- wa

2шт.

9

6581052

WASHER

WASEHR

2шт.

700129104

RETAINER

2шт.

10

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

11

700129111

KEY

5/16 X 1/2 KEY

2шт.

12

700115413

SPACER

2шт.

P/N 700115413 is used with crank P/N 700120699

1шт.

700127776

SPACER

2шт.

P/N 700127776 is used with crank P/N 70012777

1шт.

13

457400R1

KEY,5/16" Sq x 1 3/4", Par

5/16 X 1-3/4 KEY

2шт.

14

700707582

FLYWHEEL

2шт.

15

700116748

WASHER

4шт.

16

328-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

4шт.

17

700116719

SHAFT

2шт.

18

700120701

SUPPORT

- bearing

2шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

20

425-106

NUT,3/8"-16, Cl 5

6шт.

21

114-264

BOLT,Hex, 3/8" - 24 x 5-1/2", Gr 8

3/8-24 X 5-1/2 C

2шт.

22

329-156

JAM NUT,Jam, 3/8"-24, G8

2шт.
