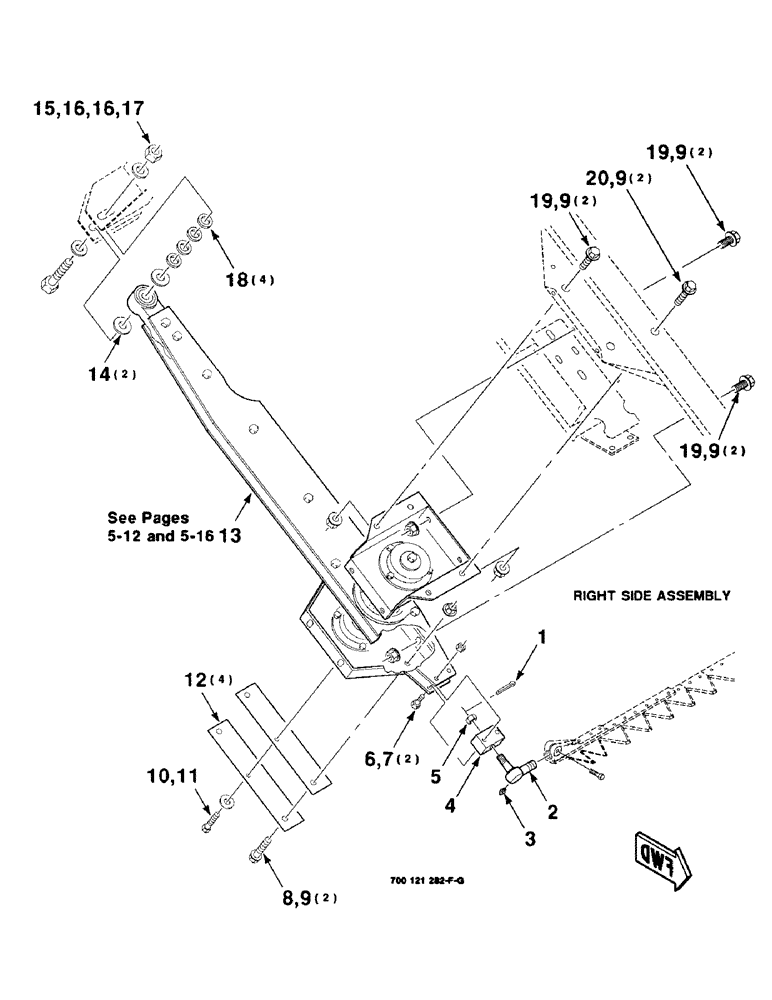

Запчасти Case IH 8820 (5-08) - SWAYBAR, PITMAN ASSEMBLY, RIGHT, HEAVY DUTY, 700130796 SWAYBAR ASSEMBLY COMPLETE, RIGHT (09) - CHASSIS

700130796

KIT

SWAYBAR ASSEMBLY COMPLETE - right

1шт.

1

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

2

8045650

BALL JOINT

SOCKET ASSEMBLY (INCLUDES ITEM 9)

1шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

4

700116824

BLOCK

- sickle

1шт.

5

7775166

SLOTTED NUT,9/16"-18, G5, Thk

9/16-18 SHTN

1шт.

6

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

1/2-20 X 2-1/2 C

2шт.

7

425-118

NUT,1/2"-20, G5

1/2-20 H

2шт.

8

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

2шт.

9

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

10шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

12

700120721

SHIM

4шт.

13

700130796

KIT

SWAYBAR - Pitman assembly, right (Includes pages 5-12, 5-13, 5-16 & 5-17)

1шт.

14

6855423

WASHER

2шт.

15

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

16

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

17

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

18

95-11066

WASHER,5/8"

5/8 X 14 GAUGE WRMB

4шт.

19

121-425

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

6шт.

20

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

2шт.
