(5-02) - SWAYBAR, PITMAN ASSEMBLY, LEFT, ALL HEADER LENGTHS, SERIAL NUMBER CFH0050001 THRU CFH0050871

Запчасти Case IH 8820 (5-02) - SWAYBAR, PITMAN ASSEMBLY, LEFT, ALL HEADER LENGTHS, SERIAL NUMBER CFH0050001 THRU CFH0050871 (09) - CHASSIS

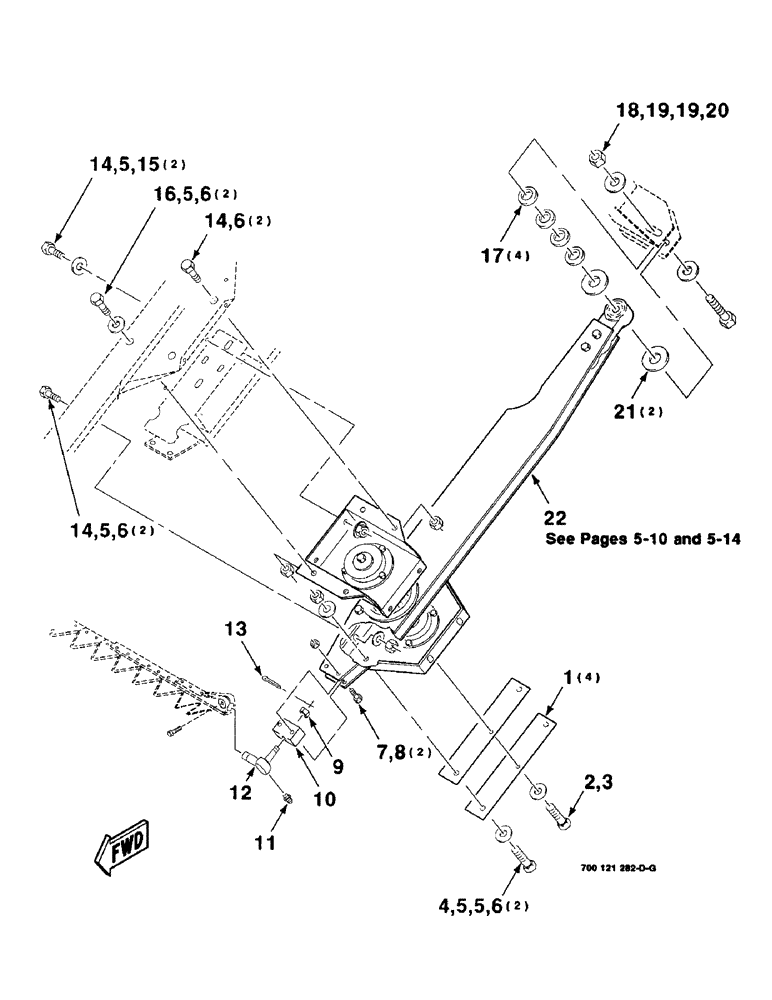

Схема запчастей Case IH 8820 - (5-02) - SWAYBAR, PITMAN ASSEMBLY, LEFT, ALL HEADER LENGTHS, SERIAL NUMBER CFH0050001 THRU CFH0050871 (09) - CHASSIS
9
15
17
6
6
19
3
20
11
12
5
19
13
18
10
21
5
16
4
14
5
5
14
14
6
7
22
8
2
6
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700120721

SHIM

4шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

10шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

7

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

1/2-20 X 2-1/2 C

2шт.

8

425-118

NUT,1/2"-20, G5

1/2-20 H

2шт.

9

7775166

SLOTTED NUT,9/16"-18, G5, Thk

9/16-18 SHTN

1шт.

10

700116824

BLOCK

- sickle

1шт.

11

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

12

8045650

BALL JOINT

SOCKET ASSEMBLY (INCLUDES ITEM 9)

1шт.

13

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

14

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

15

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

17

95-11066

WASHER,5/8"

5/8 X 14 GAUGE WRMB

4шт.

18

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

19

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

20

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

21

6855423

WASHER

2шт.

22

700120697

KIT

SWAYBAR - Pitman assembly left (Includes pages 5-10, 5-11, 5-14 & 5-15)

1шт.
