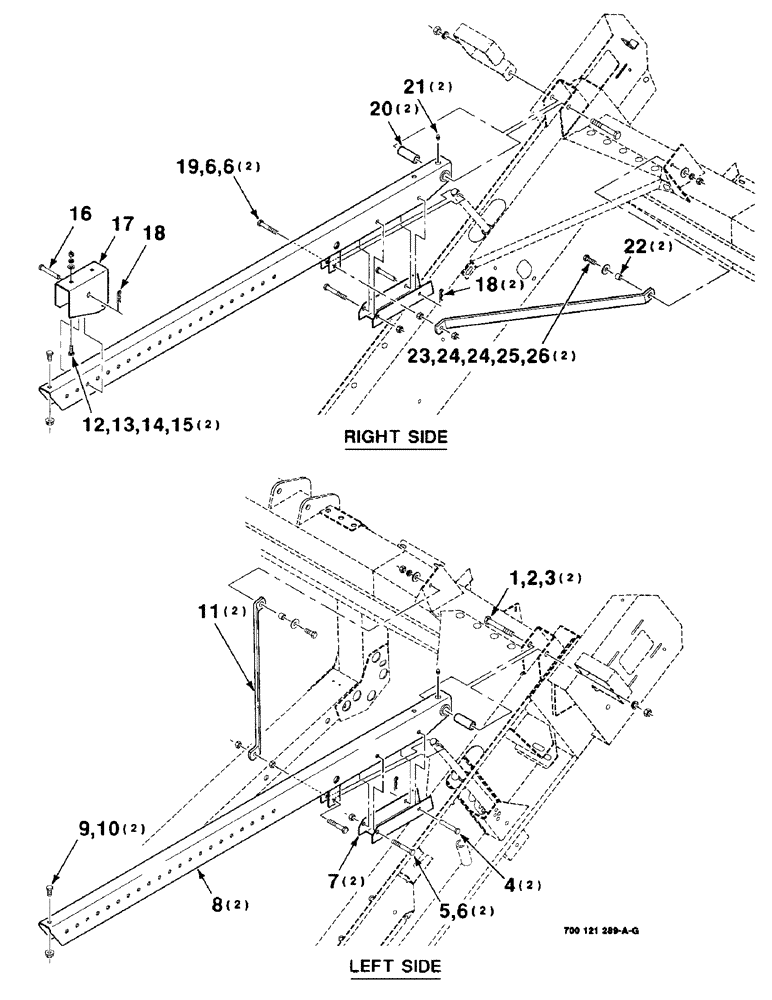

Запчасти Case IH 8820 (3-32) - REEL ARM ASSEMBLY, LEFT AND RIGHT (09) - CHASSIS

1

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

2

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

425-1010

NUT,5/8"-11, G5

2шт.

4

439-5848

HEADED PIN,1/2" x 3", G5

1/2 X 3 CLEVIS PIN

2шт.

5

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2-13 X 3-1/2 C

2шт.

6

230-4218

LOCK NUT,1/2"-13, GA

1/2-13 HCLN

6шт.

7

700116333

STOP

- cylinder

2шт.

8

700121147

ARM ASSY.

ARM WA

2шт.

9

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 X 3/4 C

2шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

11

700116345

SUPPORT

STRAP

2шт.

12

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

700121246

PIN

1/2 X 3-1/2 CLEVIS PIN - special

1шт.

17

700121151

CHANNEL

WA

1шт.

18

T54573

PIN

.120 WIRE HAIR PIN COTTER

3шт.

19

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

2шт.

20

700116331

SPACER

2шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

22

6214639

SPACER

BUSHING

2шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

24

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
