Запчасти Case IH 8820 (3-04) - REEL ASSEMBLY, 25 FOOT, HK60890, 25 FOOT REEL ASSEMBLY COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

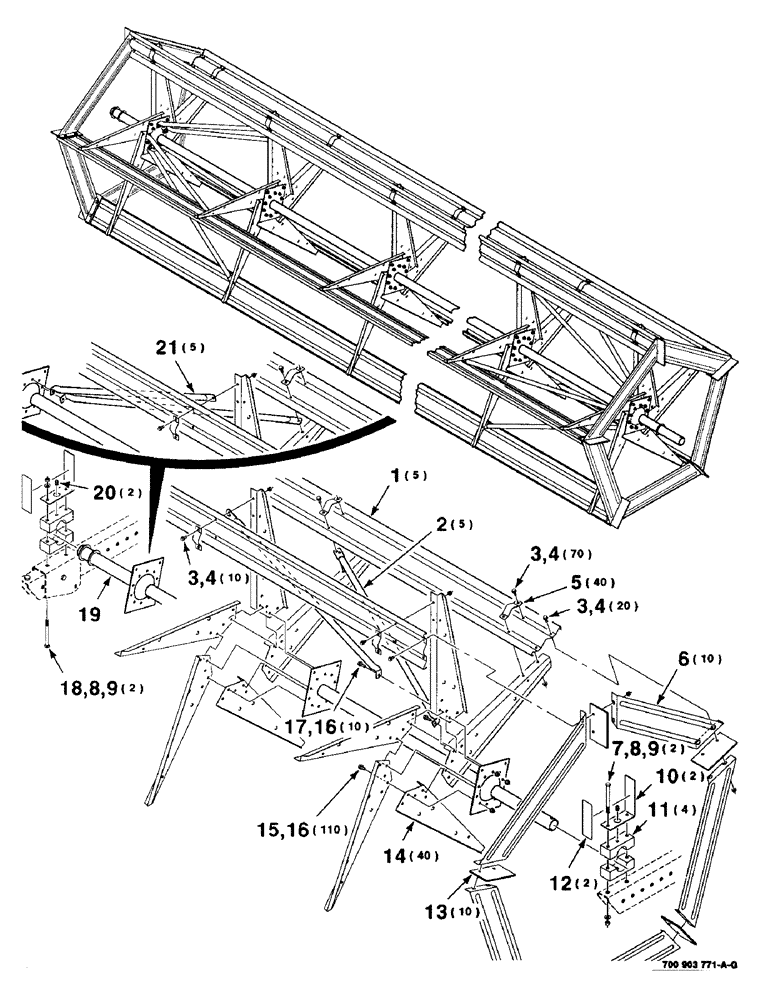

Схема запчастей Case IH 8820 - (3-04) - REEL ASSEMBLY, 25 FOOT, HK60890, 25 FOOT REEL ASSEMBLY COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS
11
6
16
12
4
21
13
3
1
15
17
4
9
16
5
20
7
8
18
9
19
3
3
4
10
2
8
14

Артикул

Название

Примечание

Количество

HK60890

REEL ASSEMBLY COMPLETE - 25 ft.

1шт.

1

700715099

BAT

- reel

5шт.

2

700116362

REINFORCEMENT,25.4 mm OD, 1058.5 mm Length

TUBE - reel arm, left

5шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

100шт.

4

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

100шт.

5

6825418

CLIP

40шт.

6

700118409

SHIELD

- end, reel

10шт.

7

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8-16 X 4-1/2 C

2шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

9

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

4шт.

10

700116313

BRACKET

CAP - bearing

2шт.

11

700707236

BEARING HALF

BEARING - wood

4шт.

12

878694

REFLECTOR

- amber

2шт.

13

700118408

FLAP

WEBBING

10шт.

14

700116314

ARM

- reel

40шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

110шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

120шт.

17

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 X 1 HFSS

10шт.

18

433-672

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

3/8-16 X 4-1/2 RHSNB

2шт.

19

700116740

TUBE

WA - reel

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 NPTF ZERK

2шт.

21

700116315

ARM

TUBE - reel arm, right

5шт.

Выбрано товаров: 22
