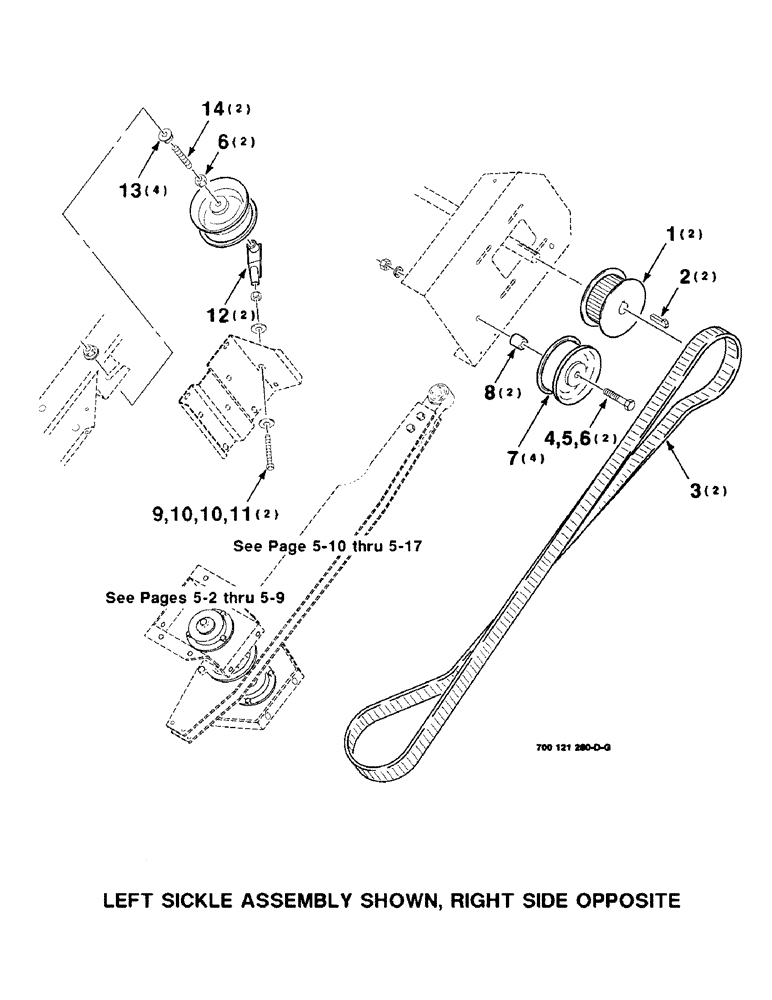

Запчасти Case IH 8820 (2-16) - SICKLE DRIVE ASSEMBLY (09) - CHASSIS

1

700707583

SPROCKET

- cog

2шт.

2

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 X 1-1/2 GIB KEY

2шт.

3

700717275

BELT

Cog 30.00 mm W

2шт.

700711518

BELT,40.00 mm W

Cog 40.00 mm W

2шт.

4

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

7

853473

PULLEY

IDLER

4шт.

8

6888960

BUSHING

SPACER

2шт.

9

873455

SCREW,Hex, 1/2" - 13 x 4", Gr 5, Full Thd

1/2-13 X 4 FTC

2шт.

10

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

12

700116722

SUPPORT

TUBE WA

2шт.

13

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

4шт.

14

700116337

STUD

2шт.
