(2-14) - SICKLE DRIVE ASSEMBLY, RIGHT, 30 FOOT

Запчасти Case IH 8820 (2-14) - SICKLE DRIVE ASSEMBLY, RIGHT, 30 FOOT (09) - CHASSIS

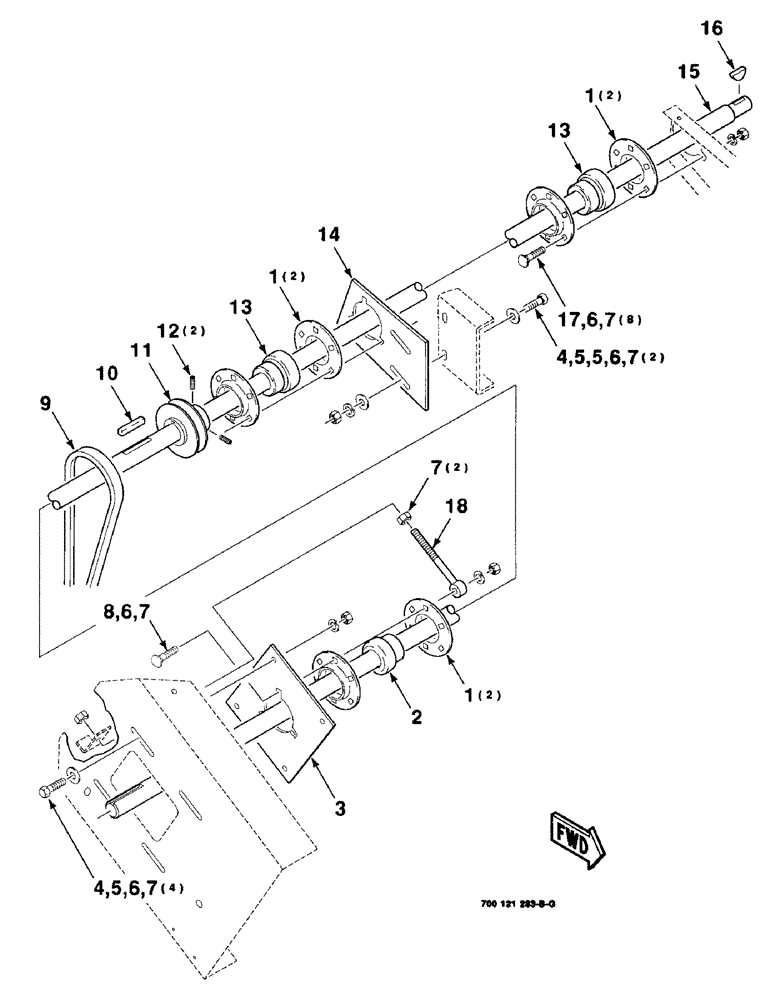

Схема запчастей Case IH 8820 - (2-14) - SICKLE DRIVE ASSEMBLY, RIGHT, 30 FOOT (09) - CHASSIS
9
6
17
1
13
11
7
4
6
16
18
12
1
7
2
5
6
7
14
7
5
1
5
10
8
7
6
4
3
13
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing (S.N. CFH0050001 thru CFH0050128)

6шт.

This has been replaced by a cast flange. p/n for flange is 700706305-it contains bearing 485259R91. Flange cannot be ordered seperately. Bearing can be ordered seperately.

1шт.

712612

FLANGE

- bearing (S.N. CFH0050129 and later)

6шт.

2

557995R11

COLLAR

BEARING - spherical (S.N. CFH0050001 thru CFH0050128)

1шт.

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical (S.N. CFH0050129 and later)

1шт.

3

700116721

PLATE

- mounting, bearing (S.N. CFH0050001 thru CFH0050128)

1шт.

700125097

PLATE

- mounting, bearing (S.N. CFH0050129 and later)

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

6

492-11038

LOCK WASHER,3/8"

15шт.

7

425-106

NUT,3/8"-16, Cl 5

17шт.

8

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

1шт.

9

700707578

V-BELT,1480.00 mm L

1шт.

10

O3312AB

KEY

1/4 X 1/4 X 1-1/2 KEY

1шт.

11

700116827

PULLEY

SHEAVE - drive, mini-draper

1шт.

12

483-1318

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

5/16-18 X 1/2 CPHSSS

2шт.

13

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - spherical (S.N. CFH0050001 thru CFH0050128)

2шт.

This has been replaced by a cast flange. p/n for flange is 700706305-it contains bearing 485259R91. Flange cannot be ordered seperately. Bearing can be ordered seperately.

1шт.

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical (S.N. CFH0050129 and later)

2шт.

14

700116826

PLATE

- mounting bearing (S.N. CFH 0050001 thru CFH0050128)

1шт.

700125098

PLATE

- mounting, bearing (S.N. CFH0050129 and later)

1шт.

15

700116717

SHAFT

- right

1шт.

16

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

18

700110578

ROD

EYEBOLT - tightener

1шт.
