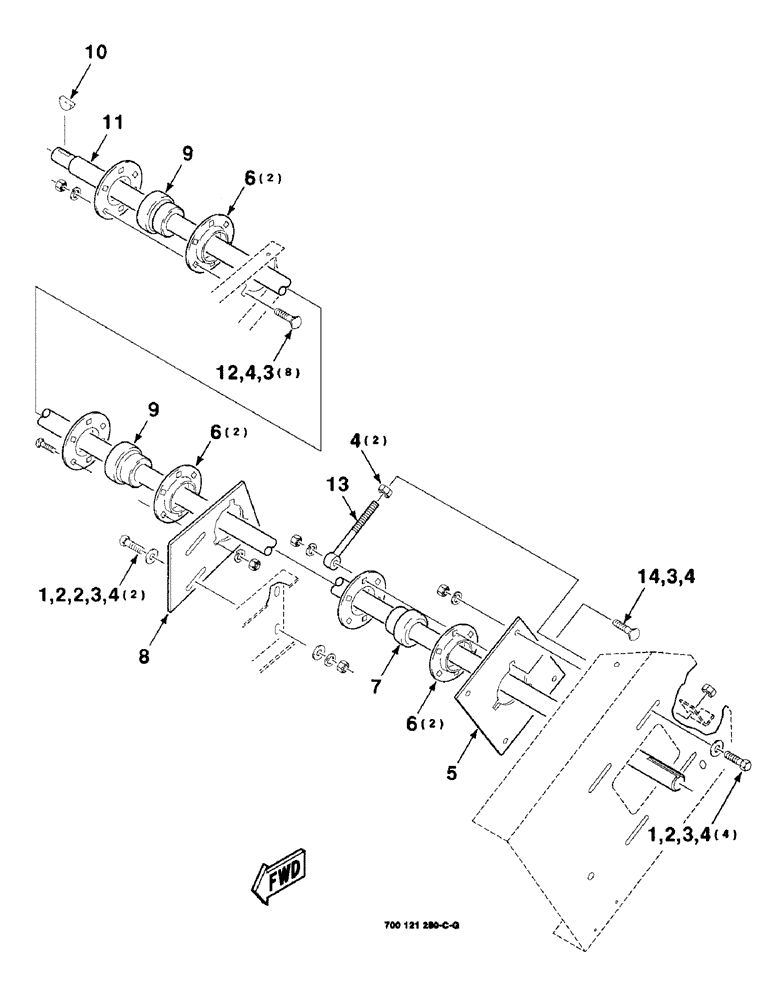

Запчасти Case IH 8820 (2-08) - SICKLE DRIVE ASSEMBLY, LEFT, 30 FOOT (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
6шт.
2
496-11041
WASHER,13/32" x 13/16" x .065", HDN
3/8 HARDENED PLAIN WASHER
8шт.
3
492-11038
LOCK WASHER,3/8"
15шт.
4
425-106
NUT,3/8"-16, Cl 5
17шт.
5
700116721
PLATE
- mounting, bearing (S.N. CFH0050001 thru CFH0050128)
1шт.
700125097
PLATE
- mounting, bearing (S.N. CFH0050129 and later)
1шт.
6
H747188
FLANGED BEARING,112.73 mm OD x 8.74 mm
FLANGE - bearing (S.N. CFH0050001 thru CFH0050128)
6шт.
This has been replaced by a cast flange. p/n for flange is 700706305-it contains bearing 485259R91. Flange cannot be ordered seperately. Bearing can be ordered seperately.
1шт.
825620C1
RETAINER
- bearing (S.N. CFH0050129 and later)
6шт.
7
557995R11
COLLAR
BEARING - spherical (S.N. CFH0050001 thru CFH0050128)
1шт.
This has been replaced by a cast flange. p/n for flange is 700706305-it contains bearing 485259R91. Flange cannot be ordered seperately. Bearing can be ordered seperately.
1шт.
485259R91
BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"
- spherical (S.N. CFH0050129 and later)
1шт.
8
700116826
PLATE
- mounting, bearing (S.N. CFH0050001 thru CFH0050128)
1шт.
700125098
PLATE
- mounting, bearing (S.N. CFH0050129 and later)
1шт.
9
2419CHA
SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W
BEARING - spherical (S.N. CFH00500001 thru CFH0050128)
2шт.
This has been replaced by a cast flange. p/n for flange is 700706305-it contains bearing 485259R91. Flange cannot be ordered seperately. Bearing can be ordered seperately.
1шт.
485259R91
BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"
- spherical (S.N. CFH0050129 and later)
1шт.
10
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
11
700116717
SHAFT
- left
1шт.
12
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3/8-16 X 1 RHSNB
8шт.
13
700110578
ROD
EYEBOLT - tightener
1шт.
14
111-361
CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5
1шт.
Выбрано товаров: 22
