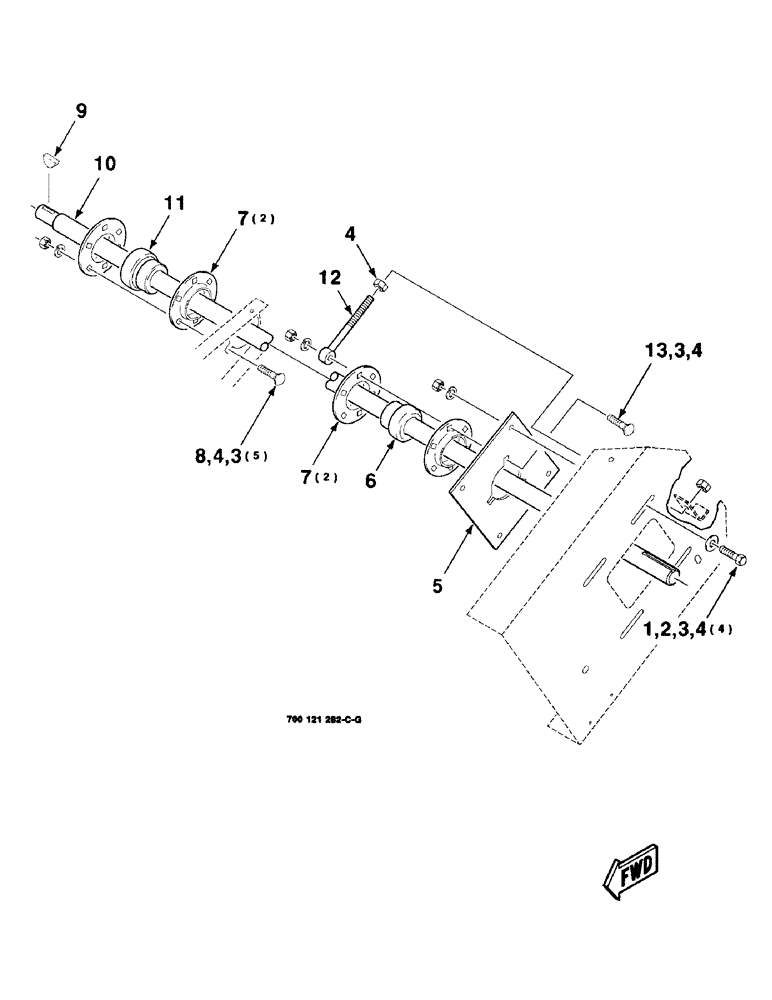

Запчасти Case IH 8820 (2-04) - SICKLE DRIVE ASSEMBLY, LEFT, 21 FOOT (09) - CHASSIS

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

3

492-11038

LOCK WASHER,3/8"

10шт.

4

425-106

NUT,3/8"-16, Cl 5

11шт.

5

700116721

PLATE

- mounting, bearing (S.N. CFH0050001 thru CFH0050128)

1шт.

700125097

PLATE

- mounting, bearing (S.N. CFH0050129 and later)

1шт.

6

557995R11

COLLAR

BEARING - spherical (S.N. CFH0050001 thru CFH0050128)

1шт.

This has been replaced by a cast flange. p/n for flange is 700706305-it contains bearing 485259R91. Flange cannot be ordered seperately. Bearing can be ordered seperately.

1шт.

7

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing (S.N. CFH0050001 thru CFH0050128)

4шт.

This has been replaced by a cast flange. p/n for flange is 700706305-it contains bearing 485259R91. Flange cannot be ordered seperately. Bearing can be ordered seperately.

1шт.

712612

FLANGE

- bearing (S.N. CFH0050129 and later)

4шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X RHSNB

1шт.

9

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

10

700118421

IDLE SHAFT

SHAFT - left

1шт.

11

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - spherical (S.N. CFH0050001 thru CFH0050128)

1шт.

This has been replaced by a cast flange. p/n for flange is 700706305-it contains bearing 485259R91. Flange cannot be ordered seperately. Bearing can be ordered seperately.

1шт.

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical (S.N. CFH0050129 and later)

1шт.

12

700110578

ROD

EYEBOLT - tightener

1шт.

13

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

1шт.
