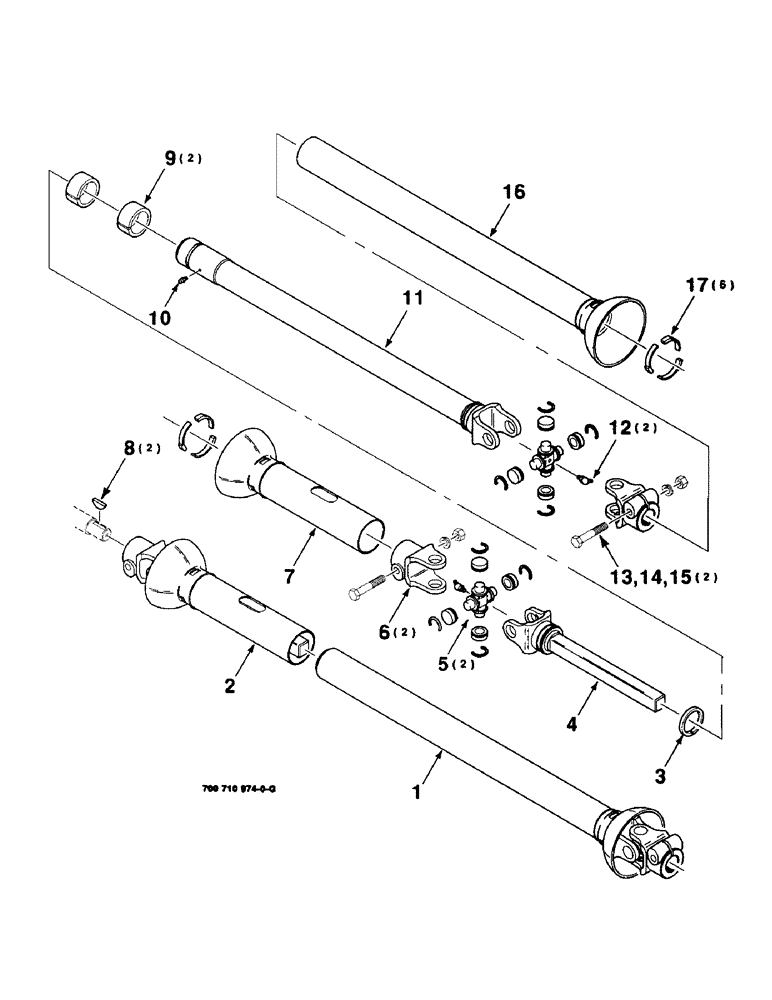

Запчасти Case IH 8820 (2-02) - HEADER DRIVELINE ASSEMBLY (09) - CHASSIS

1

700711272

PTO

DRIVELINE ASSEMBLY - half, implement

1шт.

2

700711273

PTO

DRIVELINE ASSEMBLY - half, tractor

1шт.

3

700708956

BEARING

NYLON BEARING

1шт.

4

700710534

FORK

YOKE AND SHAFT

1шт.

5

757443

U-JOINT SPIDER

CROSS AND BEARING KIT

2шт.

6

700711271

FORK

YOKE - clamp

2шт.

7

700710535

SHIELD

- outer

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

9

700710058

SUPPORT

SLEEVE - support

2шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

11

700710537

FORK

YOKE AND TUBE

1шт.

12

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65 DEGREE ZERK

2шт.

13

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

700710538

SHIELD

- inner

1шт.

17

700706872

CLIP

BEARING - shield

6шт.
