(9-18) - HYDRAULIC CYLINDER ASSEMBLY, DOUBLE SWATH, 700711411 HYDRAULIC CYLINDER COMPLETE

Запчасти Case IH 8820 (9-18) - HYDRAULIC CYLINDER ASSEMBLY, DOUBLE SWATH, 700711411 HYDRAULIC CYLINDER COMPLETE (08) - HYDRAULICS

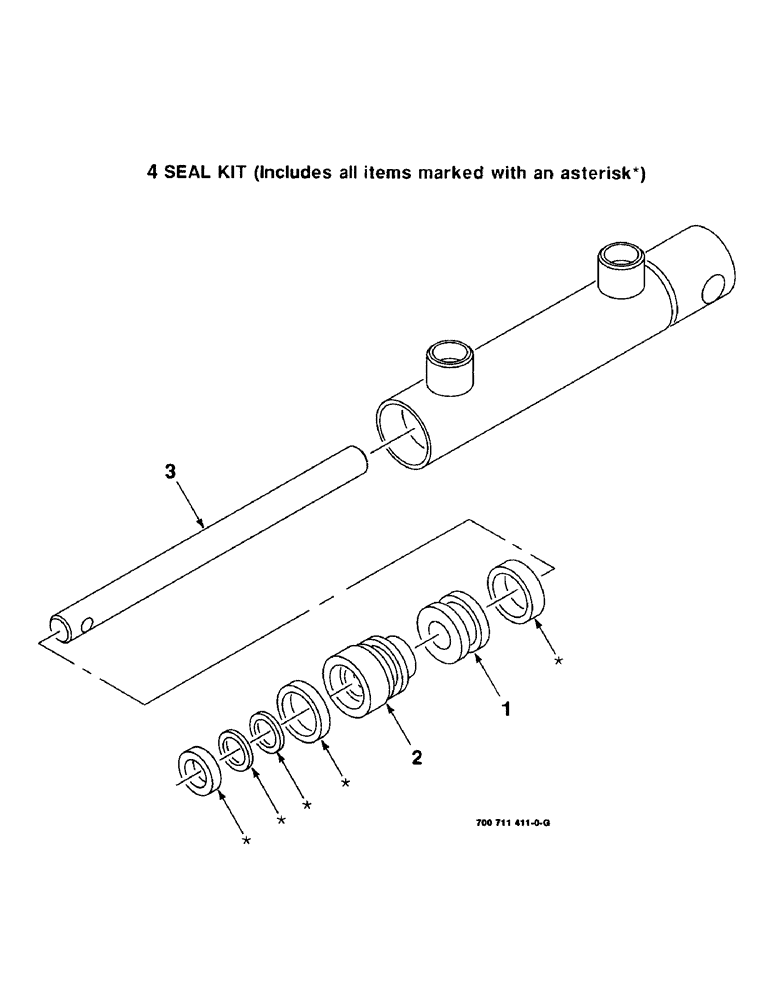

Схема запчастей Case IH 8820 - (9-18) - HYDRAULIC CYLINDER ASSEMBLY, DOUBLE SWATH, 700711411 HYDRAULIC CYLINDER COMPLETE (08) - HYDRAULICS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700711411

CYLINDER

HYDRAULIC CYLINDER COMPLETE

1шт.

1

700712587

PISTON

1шт.

2

700712586

HEAD

1шт.

3

700712589

ROD

1шт.

4

700713286

SEAL

REPAIR KIT Includes items in art marked with asterisk

1шт.
