(9-16) - DOUBLE SWATH KIT, HYDRAULICS, HK60603 DOUBLE SWATH KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY

Запчасти Case IH 8820 (9-16) - DOUBLE SWATH KIT, HYDRAULICS, HK60603 DOUBLE SWATH KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (08) - HYDRAULICS

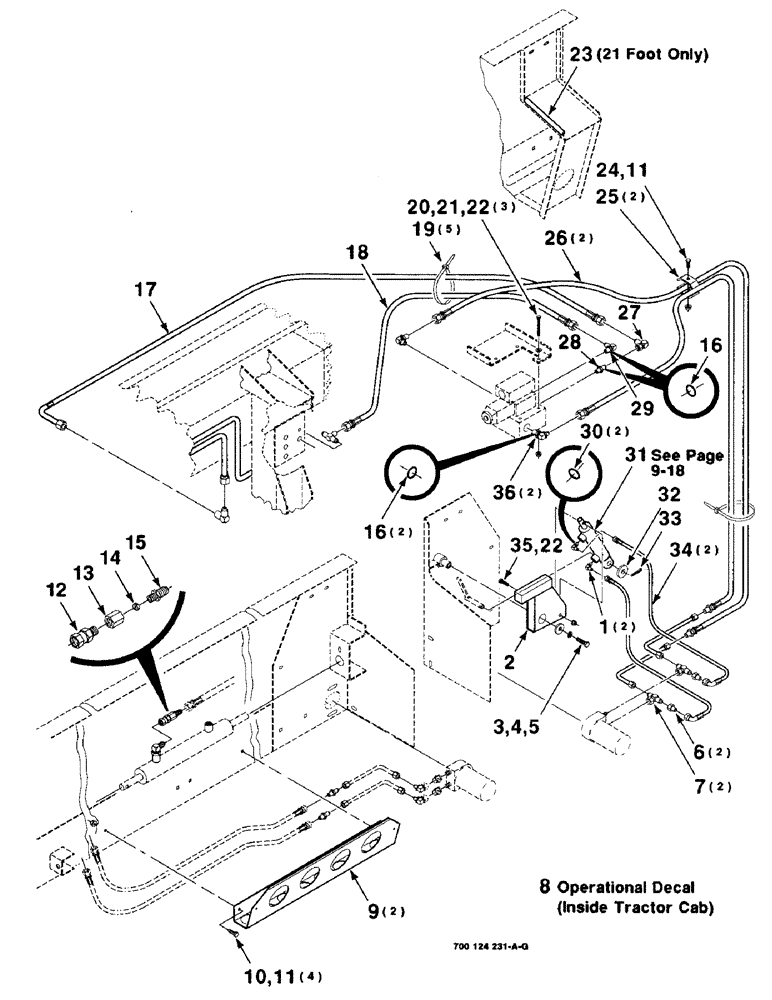

Схема запчастей Case IH 8820 - (9-16) - DOUBLE SWATH KIT, HYDRAULICS, HK60603 DOUBLE SWATH KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (08) - HYDRAULICS
12
7
5
1
31
34
11
30
23
6
36
16
27
22
19
29
2
32
14
15
17
9
10
22
24
20
16
18
11
4
26
21
25
33
13
35
8
28
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK60603

KIT

DOUBLE SWATH KIT COMPLETE

1шт.

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 DEGREE ELBOW (INCLUDES ITEM 30)

2шт.

2

700124235

LATCH

WA

1шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

495-21044

WASHER,3/8"

1шт.

6

700711771

REDUCER

- internal

2шт.

7

700711769

TEE

- swivel

2шт.

8

700711593

DECAL

- notice

1шт.

9

700124234

BRACKET

- hose

2шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

11

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

5шт.

12

700709216

ADAPTER

- swivel

1шт.

13

700120630

COUPLING

- special, plated

1шт.

14

700713611

ORIFICE

PLATE - orifice

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - flared, o-ring

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

17

700711413

HOSE

- hydraulic

1шт.

18

700711414

HYDRAULIC HOSE,16.00 mm ID x 400.00 mm, SAE 100R1

16.00 mm ID x 400.00 mm, SAE 100R1

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

5шт.

20

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1/4-20 X 2-1/2 C

3шт.

21

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

3шт.

22

1703354

NUT

1/4-20 HFTLN GR/G

4шт.

23

6842108

ORNAMENTAL STRIP

TRIM

1шт.

24

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

25

700102292

CLAMP

- line

2шт.

26

700711415

HYDRAULIC HOSE,16.00 mm ID x 1350.00 mm, SAE 100R1

16.00 mm ID x 1350.00 mm, SAE 100R1

2шт.

27

700701624

ELBOW

90 DEGREES

1шт.

28

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, male (Incl. item 16) 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

29

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

90 DEGREE ELBOW (INCLUDES ITEM 16)

1шт.

30

738468

O-RING

2шт.

31

700711411

CYLINDER

- hydraulic

1шт.

32

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

33

62224

PIN, SPLIT (COTTER)

3/16 X 1 COTTER PIN

1шт.

34

700711417

HOSE

- hydraulic

2шт.

36

700711768

FITTING

3/4 FITTING - swivel (Includes item 16)

2шт.

35

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
