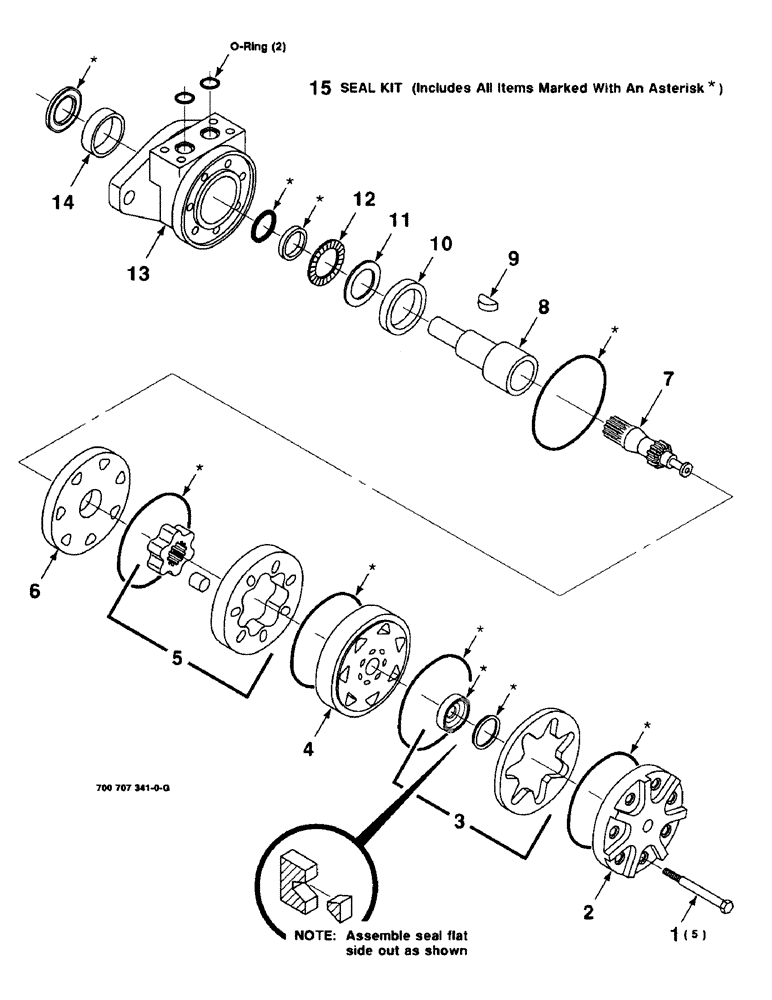

Запчасти Case IH 8820 (8-32) - HYDRAULIC MOTOR ASSEMBLY, REEL DRIVE, TRW, 700707341 HYDRAULIC MOTOR ASSEMBLY COMPLETE (08) - HYDRAULICS

700707341

HYDRAULIC MOTOR

MOTOR - hydraulic, complete

1шт.

1

700709230

BOLT,Spcl, 5/16" - 24 x 3.62"

5/16-24 X 3.62 BOLT, SPECIAL

5шт.

2

700709229

COVER

END

1шт.

3

700709228

COMMUTATOR

ASSEMBLY

1шт.

4

700709227

TUBE ASSY.

MANIFOLD

1шт.

5

700709226

ROTOR

ASSEMBLY

1шт.

6

700709224

PLATE

- wear

1шт.

7

700709225

LINK

- drive

1шт.

8

700709223

SHAFT

- coupling

1шт.

9

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

10

700709218

BUSHING

- inner

1шт.

11

700709221

THRUST WASHER

- thrust

1шт.

12

A188926

THRUST BEARING,27.03mm ID x 40.87mm OD x 3.17mm W

BEARING - thrust

1шт.

13

700709217

BEARING HOUSING

HOUSING WITH BEARING AND SEAL

1шт.

14

700709219

BUSHING

- outer

1шт.

15

1980817C1

SEAL KIT

SEAL KIT

1шт.
