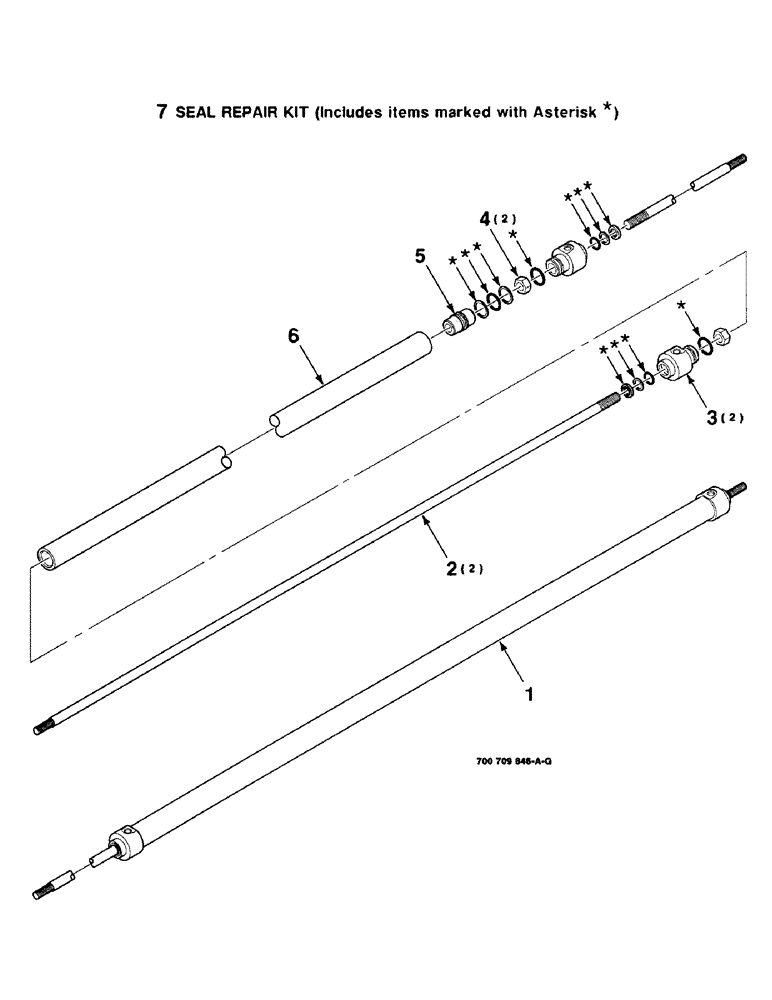

Запчасти Case IH 8820 (8-26) - HYD. CYL. ASSEMBLY, TWO WAY, DRAPER SHIFT, 700709846 HYD. CYL. ASSEMBLY COMPLETE, 30 FOOT HEADER (08) - HYDRAULICS

1

700709846

CYLINDER

HYDRAULIC CYLINDER ASSEMBLY COMPLETE (1.25" BORE X 63.79" STROKE)

1шт.

2

700710521

SHAFT

ROD - piston

2шт.

3

700708839

CYLINDER HEAD

HEAD

2шт.

4

425-1010

NUT,5/8"-11, G5

2шт.

5

700708840

PISTON

- center

1шт.

6

700710522

TUBE

BARRELL - tube

1шт.

7

700708843

SEAL KIT

O-RING AND SEAL REPAIR KIT

1шт.
