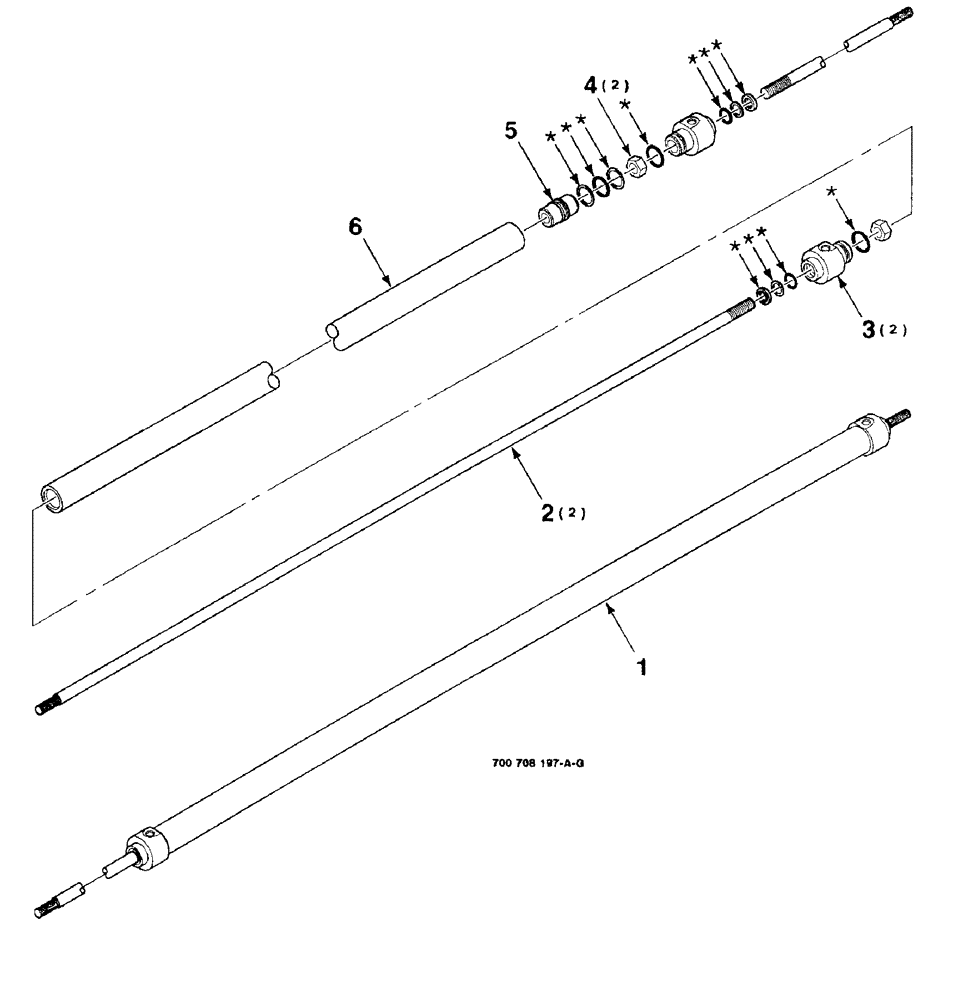

Запчасти Case IH 8820 (8-24) - HYD. CYL. ASSY., TWO WAY, DRAPER SHIFT, 700708197 HYD. CYL. ASSY. COMPLETE, 21 AND 25 FOOT HEADER (08) - HYDRAULICS

1

700708197

HYDRAULIC CYLINDER

ASSEMBLY COMPLETE (1.15" BORE X 57.52" STROKE)

1шт.

2

700708844

PISTON ROD

ROD - piston

2шт.

3

700708839

CYLINDER HEAD

HEAD

2шт.

4

425-1010

NUT,5/8"-11, G5

2шт.

5

700708840

PISTON

- center

1шт.

6

700708845

CYLINDER

BARREL - tube

1шт.

7

700708843

SEAL KIT

KIT repair, includes items with asterisks on the art.

1шт.
