(8-22) - HYD. CYL. ASSEMBLY, REEL, SLAVE, 700714179 HYD. CYL. ASSEMBLY COMPLETE, 1" BORE X 9-3/8" STROKE

Запчасти Case IH 8820 (8-22) - HYD. CYL. ASSEMBLY, REEL, SLAVE, 700714179 HYD. CYL. ASSEMBLY COMPLETE, 1" BORE X 9-3/8" STROKE (08) - HYDRAULICS

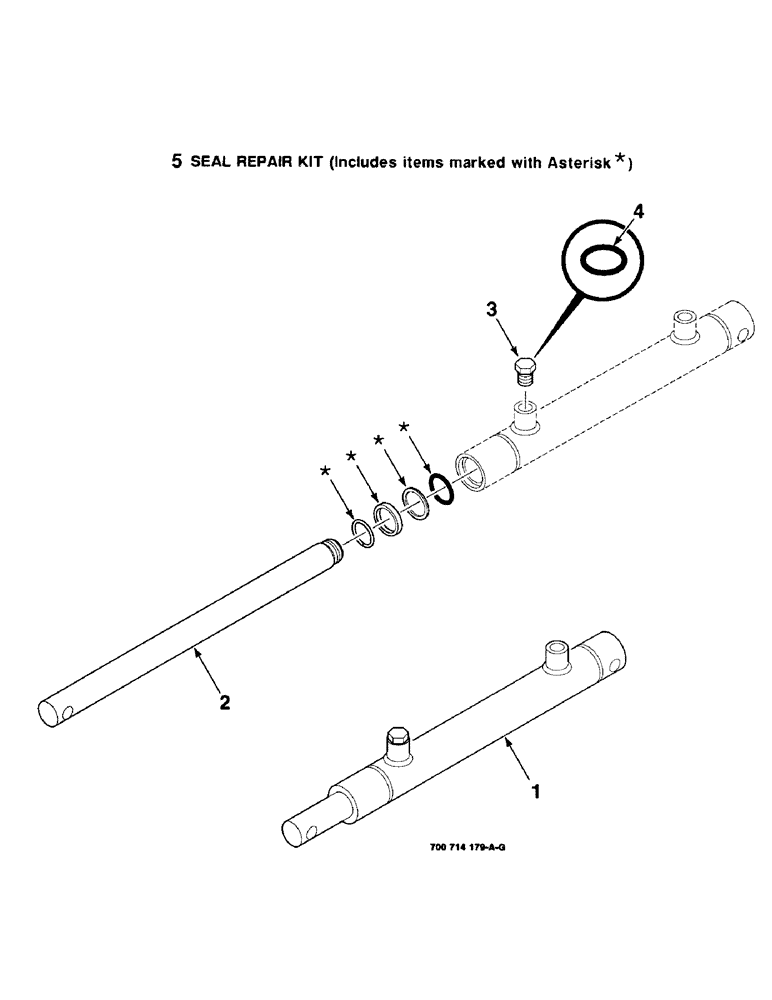

Схема запчастей Case IH 8820 - (8-22) - HYD. CYL. ASSEMBLY, REEL, SLAVE, 700714179 HYD. CYL. ASSEMBLY COMPLETE, 1" BORE X 9-3/8" STROKE (08) - HYDRAULICS
2
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714179

CYLINDER,Double Acting, 25.4mm Rod, 238.12mm Stroke

HYDRAULIC CYLINDER ASSEMBLY COMPLETE, SLAVE

1шт.

2

700714208

ROD

- piston

1шт.

3

7746456

PLUG

(INCLUDES ITEM 4)

1шт.

4

738468

O-RING

1шт.

5

700714207

SEAL PACKAGE

SEAL AND O-RING REAPIR KIT

1шт.
