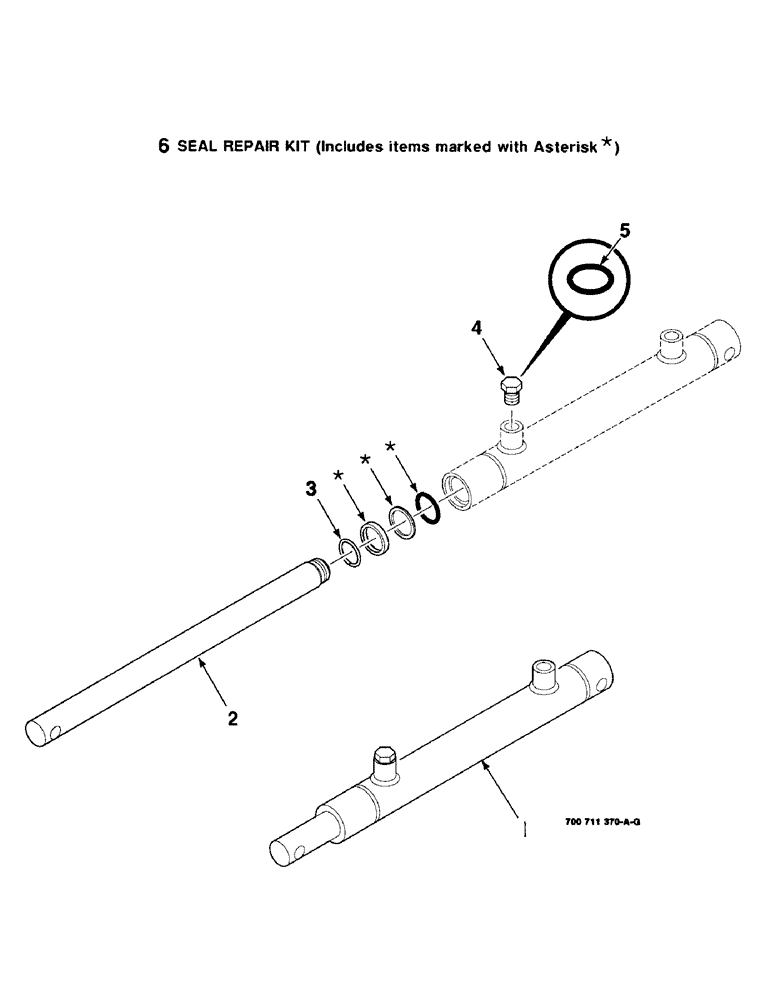

Запчасти Case IH 8820 (8-20) - HYD. CYL. ASSEMBLY, REEL, SLAVE, 700711370 HYD. CYL. ASSEMBLY COMPLETE, 1" BORE X 9-3/8" STROKE (08) - HYDRAULICS

1

700711370

CYLINDER

HYDRAULIC CYLINDER ASSEMBLY COMPLETE, SLAVE

1шт.

2

700708850

PISTON ROD

ROD - piston

1шт.

3

700708852

LOCKING RING

RING - retainer

2шт.

4

700709508

PLUG

1шт.

7746456

PLUG

(INCLUDES ITEM 5)

1шт.

5

738468

O-RING

1шт.

6

700709509

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.
