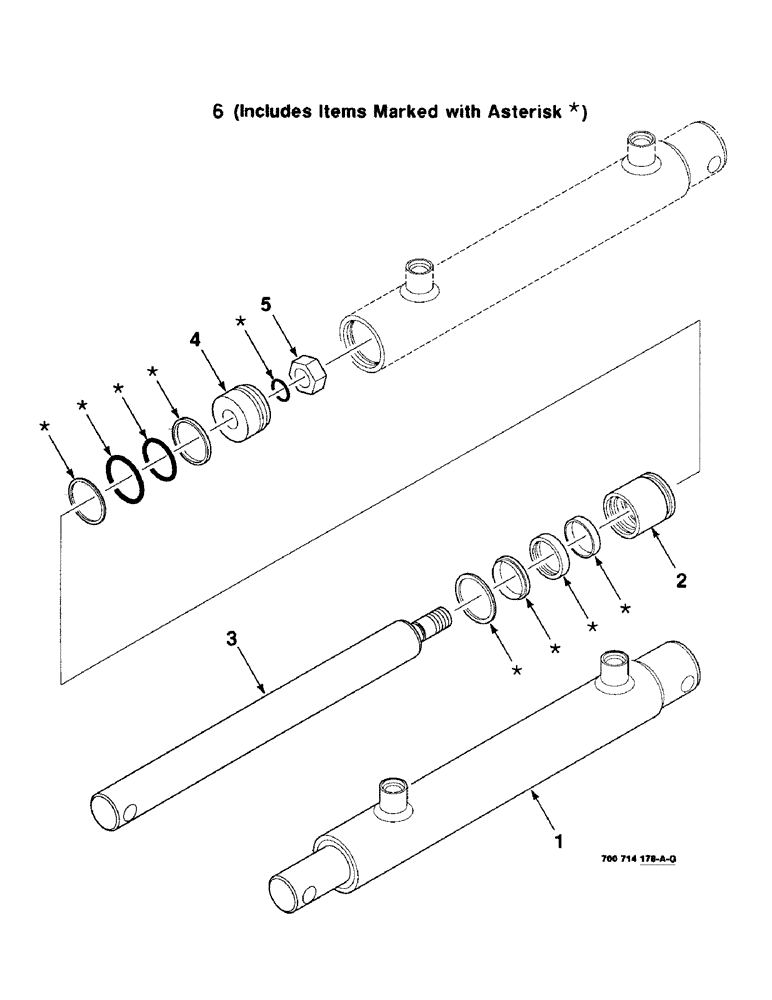

Запчасти Case IH 8820 (8-18) - HYD. CYL. ASSEMBLY, REEL, MASTER, 700714178 HYD. CYL. ASSEMBLY COMPLETE, 1-1/2" BORE X 9-3/8" STROKE (08) - HYDRAULICS

1

700714178

CYLINDER,Double Acting, 28.58mm Rod, 238.12mm Stroke

HYDRAULIC CYLINDER ASM. COMPLETE (1-1/2" BORE X 9-3/8" STROKE)

1шт.

2

700714206

GUIDE

HEAD

1шт.

3

700714205

ROD

- piston

1шт.

4

700714203

PISTON

1шт.

5

700714202

NUT

- lock

1шт.

6

700714201

SEAL PACKAGE

SEAL AND O-RING REAIR KIT

1шт.
