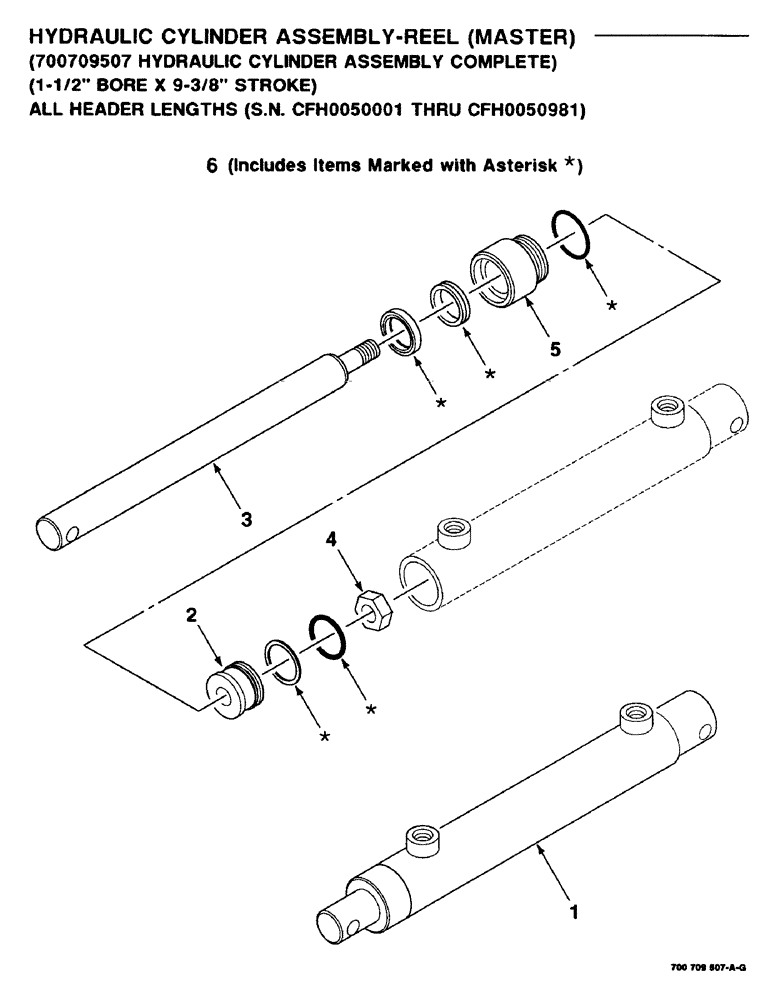

Запчасти Case IH 8820 (8-16) - HYD. CYL. ASSEMBLY, REEL, MASTER, 700709507 HYD. CYL. ASSEMBLY COMPLETE, 1-1/2" BORE X 9-3/8" STROKE (08) - HYDRAULICS

1

700709507

HYDRAULIC CYLINDER

COMPLETE (1-1/2" ORE X 9-3/8" STROKE)

1шт.

2

700708856

PISTON

1шт.

3

700708854

PISTON ROD

ROD - piston

1шт.

4

7738248

NUT

1шт.

5

700709510

CYLINDER HEAD

HEAD

1шт.

6

700709511

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.
