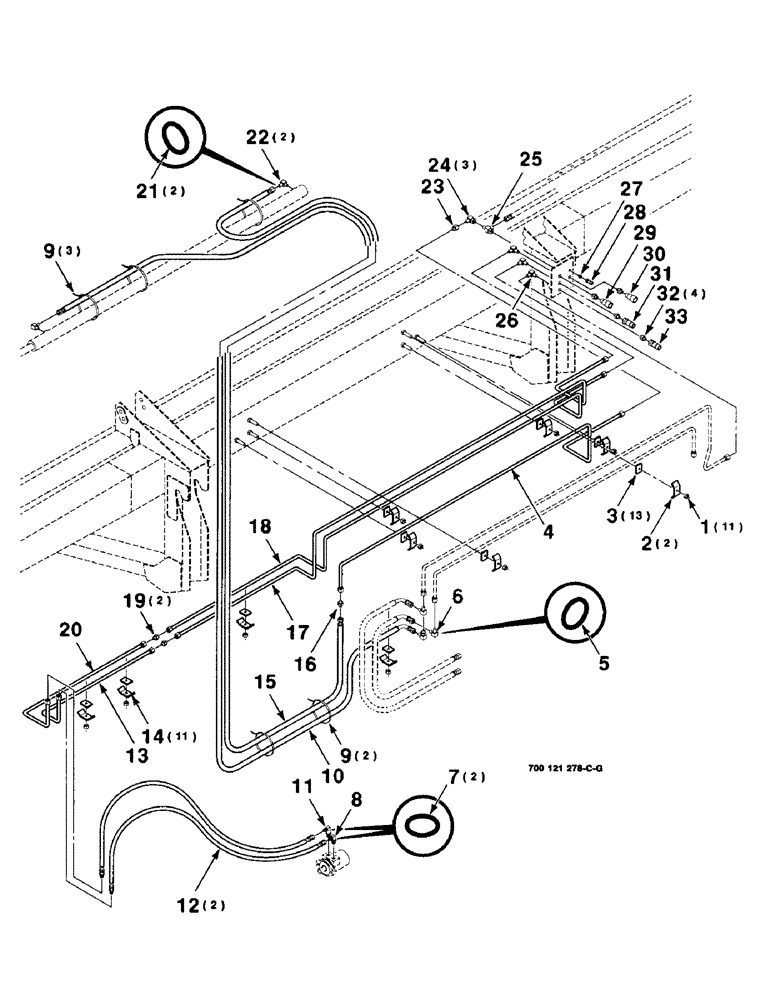

Запчасти Case IH 8820 (8-14) - HYDRAULIC ASSEMBLY, DRAPER POSITION AND REEL DRIVE, 30 FOOT HEADER, SERIAL NO. CFH0118001 AND LATER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
230-4115
LOCK NUT,5/16"-18, GA
5/16-18 HTLN
11шт.
2
700121311
CLAMP
- line
2шт.
3
700121168
PAD
13шт.
4
700709005
CORE
LINE - hydraulic
1шт.
5
738468
O-RING
1шт.
6
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
90 DEGREE ELBOW (INCLUDES ITEM 5)
1шт.
7
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
2шт.
8
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
(Incl. item 7) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring
1шт.
9
7021728
STRAP
TIE
5шт.
10
700710234
HOSE
- hydraulic
1шт.
11
700701939
ELBOW
90 DEGREE ELBOW - long (Includes item 7)
1шт.
12
700710185
HYDRAULIC HOSE,12.70 mm ID x 1350.00 mm, SAE 100R2
12.70 mm ID x 1350.00 mm, SAE 100R2
2шт.
13
700707482
TUBE
LINE - hydraulic
1шт.
14
700102292
CLAMP
- line
11шт.
15
700707285
HOSE
- hydraulic
1шт.
16
846477
UNION
CONNECTOR
1шт.
17
700709909
TUBE
LINE - hydraulic
1шт.
18
700709910
TUBE
LINE - hydraulic
1шт.
19
218-735
UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree
CONNECTOR - union
2шт.
20
700707490
TUBE
LINE - hydraulic
1шт.
21
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
2шт.
22
700707498
ELBOW
90 DEGREE ELBOW (INCLUDES ITEM 20)
2шт.
23
8046708
FITTING
REDUCER - internal
1шт.
24
700707491
ELBOW
90 DEGREE ELBOW
3шт.
25
218-5220
TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run
1шт.
26
700701624
ELBOW
90 DEGREE ELBOW
1шт.
27
700707479
HYD CONNECTOR
NIPPLE
1шт.
28
31-2037
ADAPTER
1шт.
29
H436396
COUPLING
BODY - quick disconnect
1шт.
30
700709820
QUICK MALE COUPLING
COUPLER
1шт.
31
1-7141
FITTING
NIPPLE - quick disconnect
1шт.
32
700707494
ADAPTER
- bulkhead
4шт.
33
700709821
HYD CONNECTOR
FITTING - quick disconnect, male
1шт.
Выбрано товаров: 33
