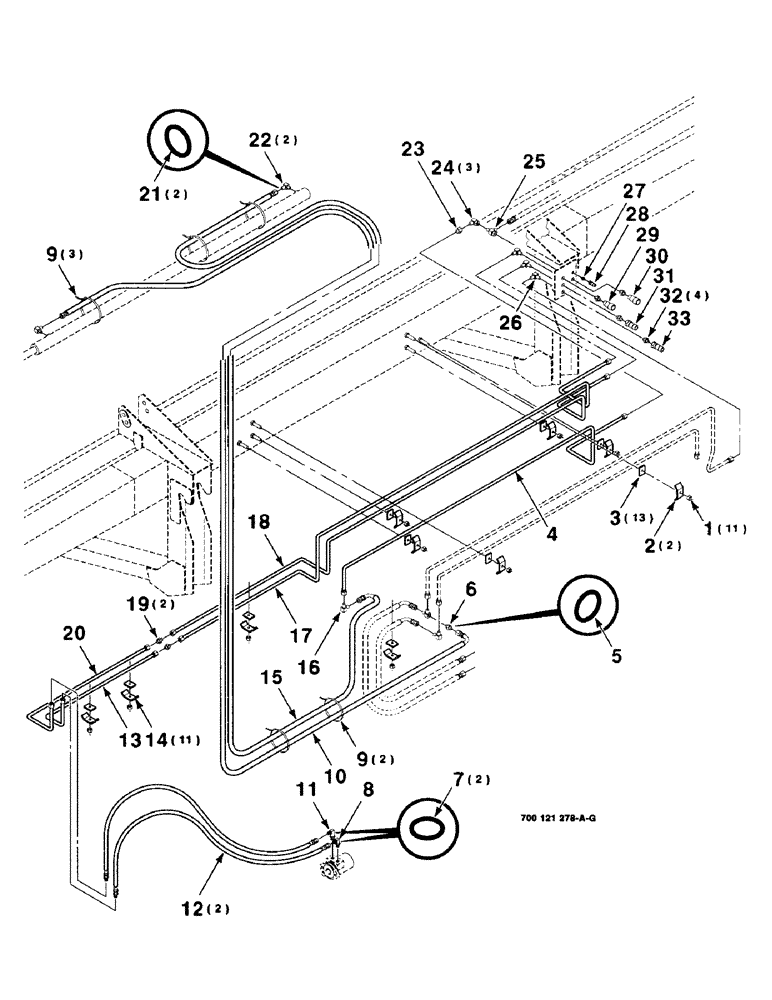

Запчасти Case IH 8820 (8-10) - HYDRAULIC ASSEMBLY, DRAPER POSITION AND REEL DRIVE, 21 FOOT HEADER, SERIAL NO. CFH0118001 AND LATER (08) - HYDRAULICS

1

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN

11шт.

2

700121311

CLAMP

- line

2шт.

3

700121168

PAD

13шт.

4

700709905

TUBE

LINE - hydraulic

1шт.

5

738468

O-RING

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (INCLUDES ITEM 5)

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(Incl. item 7) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

9

7021728

STRAP

TIE

5шт.

10

700707391

HOSE

- hydraulic

1шт.

11

700701939

ELBOW

90 DEGREE ELBOW - long (Includes item 7)

1шт.

12

700710185

HYDRAULIC HOSE,12.70 mm ID x 1350.00 mm, SAE 100R2

12.70 mm ID x 1350.00 mm, SAE 100R2

2шт.

13

700708260

TUBE

LINE - hydraulic

1шт.

14

700102292

CLAMP

- line

11шт.

15

700710588

HOSE

- hydraulic

1шт.

16

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

90 DEGREE ELBOW

1шт.

17

700709909

TUBE

LINE - hydraulic

1шт.

18

700709910

TUBE

LINE - hydraulic

1шт.

19

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - union

2шт.

20

700708261

TUBE

LINE - hydraulic

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

22

700707498

ELBOW

90 DEGREE ELBOW (INCLUDES ITEM 21)

2шт.

23

8046708

FITTING

REDUCER - internal

1шт.

24

700707491

ELBOW

90 DEGREE ELBOW

3шт.

25

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

1шт.

26

700701624

ELBOW

90 DEGREE ELBOW

1шт.

27

700707479

HYD CONNECTOR

NIPPLE

1шт.

28

31-2037

ADAPTER

1шт.

29

H436396

COUPLING

BODY - quick disconnect

1шт.

30

700709820

QUICK MALE COUPLING

COUPLER

1шт.

31

1-7141

FITTING

NIPPLE - quick disconnect

1шт.

32

700707494

ADAPTER

- bulkhead

4шт.
