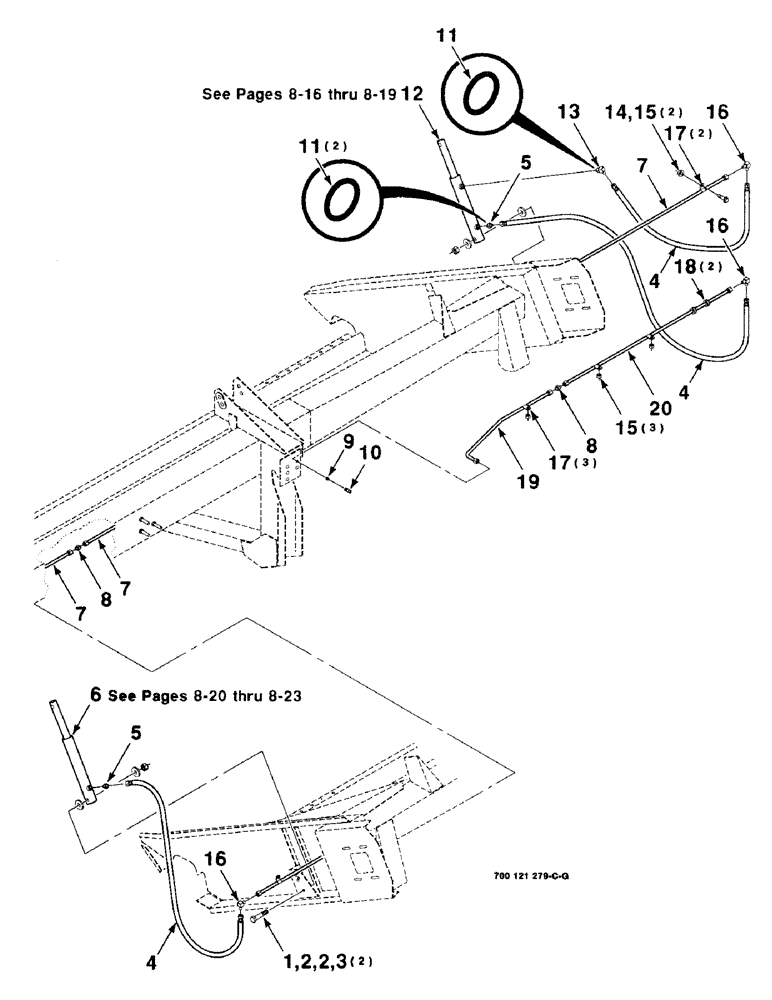

Запчасти Case IH 8820 (8-08) - HYDRAULIC ASSEMBLY, 30 FOOT, REEL LIFT (08) - HYDRAULICS

1

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

2

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

3

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

4

700707500

FLEXIBLE HOSE

HOSE - hydraulic

3шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - flared (Incl. item 11)

2шт.

6

700711370

CYLINDER

ASSEMBLY - hydraulic, slave (S.N. CFH0050001 thru CFH0050981)

1шт.

700714179

CYLINDER,Double Acting, 25.4mm Rod, 238.12mm Stroke

ASSEMBLY - hydraulic, slave (S.N. CFH0118001 and later)

1шт.

7

700707573

FLEXIBLE HOSE

LINE - hydraulic

3шт.

8

846477

UNION

2шт.

9

31-2037

ADAPTER

1шт.

10

700707479

HYD CONNECTOR

NIPPLE

1шт.

11

738468

O-RING

3шт.

12

700709507

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - hydraulic, master (S.N. CFH0050001 thru CFH0050981)

1шт.

700714178

CYLINDER,Double Acting, 28.58mm Rod, 238.12mm Stroke

ASSEMBLY - hydraulic, master (S.N. CFH118001 and later)

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 DEGREE ELBOW (INCLUDES ITEM 11)

1шт.

14

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

15

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

5шт.

16

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

90 DEGREE ELBOW

3шт.

17

700708090

CLAMP

- line

5шт.

18

248-13101

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

2шт.

19

700709411

TUBE

LINE - hydraulic

1шт.

20

700707728

FLEXIBLE HOSE

LINE - hydraulic

1шт.
