(8-02) - HYDRAULICS ASSEMBLY, DRAPER DRIVE, ALL HEADER LENGTHS

Запчасти Case IH 8820 (8-02) - HYDRAULICS ASSEMBLY, DRAPER DRIVE, ALL HEADER LENGTHS (08) - HYDRAULICS

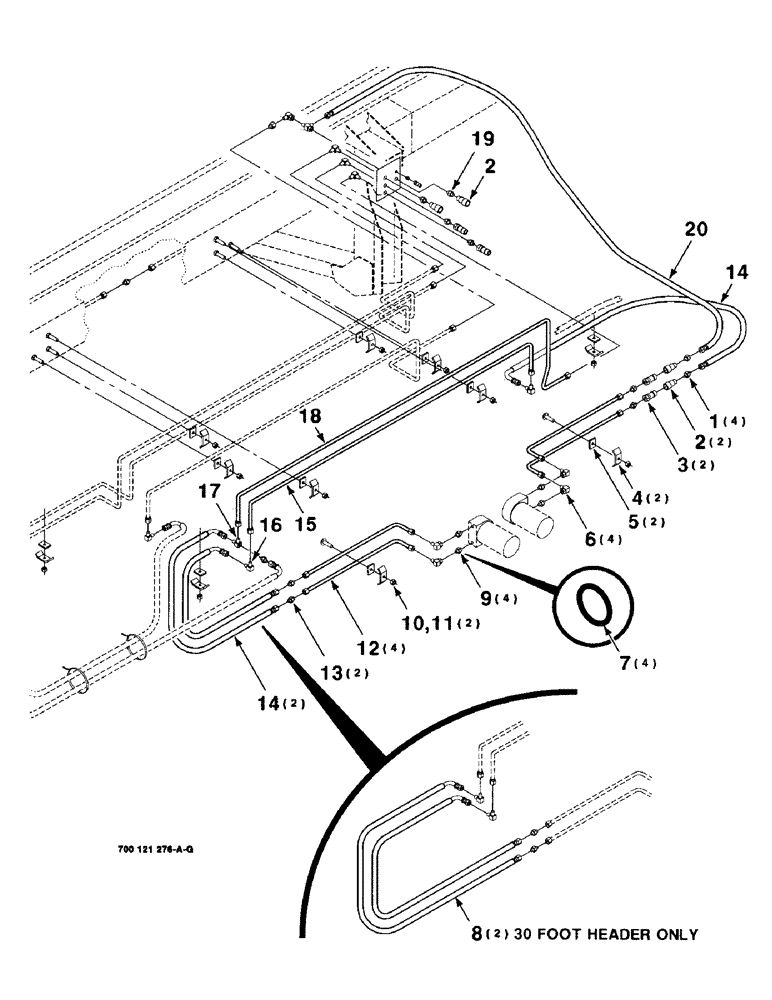

Схема запчастей Case IH 8820 - (8-02) - HYDRAULICS ASSEMBLY, DRAPER DRIVE, ALL HEADER LENGTHS (08) - HYDRAULICS
4
14
9
2
13
11
2
6
17
1
15
14
12
18
19
3
20
7
5
16
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7746514

ROD, CONNECTING

CONNECTOR - male

4шт.

2

700709820

QUICK MALE COUPLING

FITTING - quick disconnect, female

3шт.

3

700709821

HYD CONNECTOR

FITITNG - quick disconnect, male

2шт.

4

700102292

CLAMP

CLMAP - line

2шт.

5

700121168

PAD

2шт.

6

700701624

ELBOW

90 DEGREE ELBOW

4шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

8

700710687

HOSE

- hydraulic (30 foot only)

2шт.

9

51200289

FITTING

CONNECTOR - flared (Includes item 7)

4шт.

10

111-274

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 3/4", G5

5/16-18 X 1-3/4 RHSNB

2шт.

11

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

2шт.

12

700710237

TUBE,15.88 mm OD, 890, 110 mm Length

LINE - hydraulic

4шт.

13

7746159

FITTING

UNION

2шт.

14

700710235

HOSE

- hydraulic (21 and 25 ft)

3шт.

700710235

HOSE

- hydraulic (30 foot)

1шт.

15

700709908

TUBE

LINE - hydrualic

1шт.

16

700710232

ELBOW

90 DEGREE ELBOW

1шт.

17

700121831

ELBOW

90 DEGREE ELBOW

1шт.

18

700709906

TUBE

LINE - hydraulic

1шт.

19

700707494

ADAPTER

- bulkhead

1шт.

20

700709800

HYDRAULIC HOSE,16.00 mm ID x 1465.00 mm, SAE 100R1

16.00 mm ID x 1465.00 mm, SAE 100R1

1шт.
