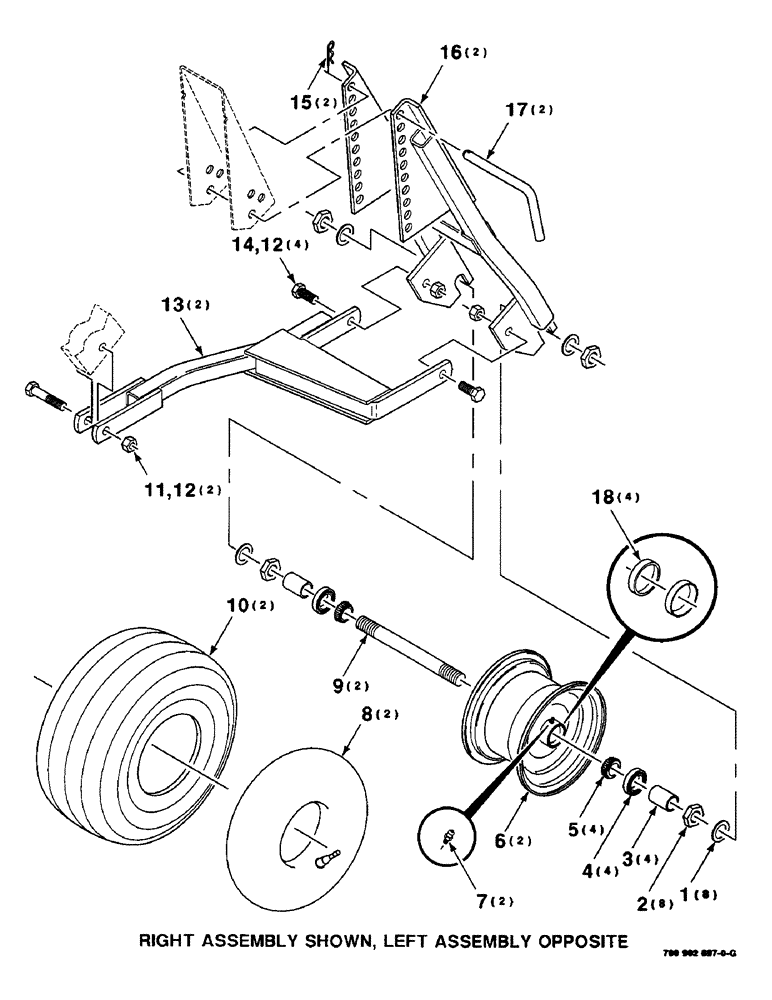

Запчасти Case IH 8820 (9-010) - GAUGE WHEEL KIT, HK60612 GAUGE WHEEL KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (58) - ATTACHMENTS/HEADERS

HK60612

LAND WHEEL

GAUGE WHEEL KIT COMPLETE

1шт.

1

195-2103

WASHER,1 1/16" x 1 1/2" x .065"

1 X 18 GAUGE NRMB

8шт.

2

425-1516

JAM NUT,Jam, 1"-14, G5

1-14 HEX JAM NUT

8шт.

3

700100044

SPACER

4шт.

4

744888

SEAL

- grease

4шт.

5

D29266

ROLLER BEARING,1" ID x 0.58"

BEARING - cone

4шт.

6

700710055

RIM

WHEEL ASM (Includes items 7 & 18)

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

8

700710212

AIR TUBE

INNER TUBE

2шт.

9

700100043

AXLE

2шт.

10

700700028

TYRE/TIRE

TIRE

2шт.

11

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

12

230-42110

LOCK NUT,5/8"-11, GA

5/8-11 HCLN

6шт.

13

700126414

SUPPORT

2шт.

14

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

15

T54573

PIN

.120 WIRE HAIRPIN COTTER

2шт.

16

700126407

SUPPORT

WA

2шт.

17

700116382

PIN

2шт.

18

572564R1

BEARING CUP

CUP - bearing

4шт.
