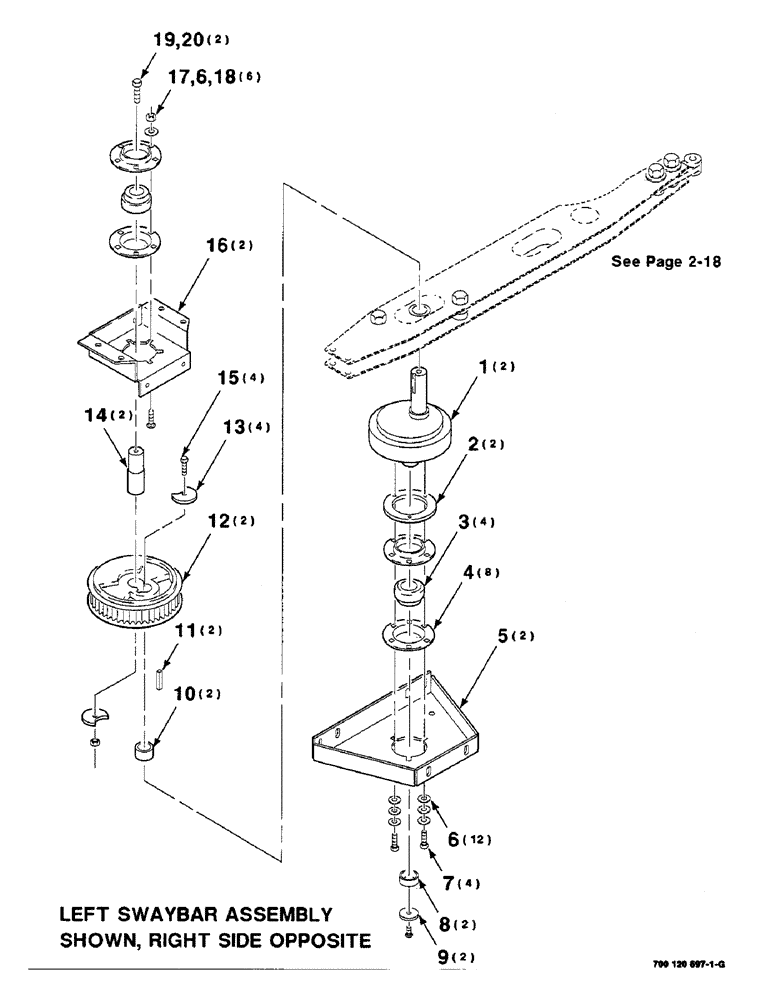

Запчасти Case IH 8820 (2-16) - SWAYBAR ASSEMBLY, SERIAL NUMBER CFH0030159 THRU CFH0030378 (58) - ATTACHMENTS/HEADERS

1

700127777

CRANK

2шт.

2

700120722

RING

2шт.

3

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING

4шт.

4

712612

FLANGE

- bearing

8шт.

5

700120702

SUPPORT

MOUNTING WA - bearing

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

18шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

6206452

SPACER

2шт.

9

6581052

WASHER

2шт.

10

700127776

SPACER

2шт.

11

457400R1

KEY,5/16" Sq x 1 3/4", Par

5/16 X 1-3/4 KEY

2шт.

12

700707582

FLYWHEEL

2шт.

13

700116748

WASHER

4шт.

14

700116719

SHAFT

2шт.

15

328-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

4шт.

16

700120701

SUPPORT

- bearing

2шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

18

425-106

NUT,3/8"-16, Cl 5

6шт.

19

114-264

BOLT,Hex, 3/8" - 24 x 5-1/2", Gr 8

3/8-24 X 5-1/2 C

2шт.

20

329-156

JAM NUT,Jam, 3/8"-24, G8

2шт.
