Запчасти Case IH 8820 (9-116) - VALVE ASSEMBLY, CONTROL, REEL LIFT, 700707590 VALVE ASSEMBLY, CONTROL, REEL LIFT COMPLETE (35) - HYDRAULIC SYSTEMS

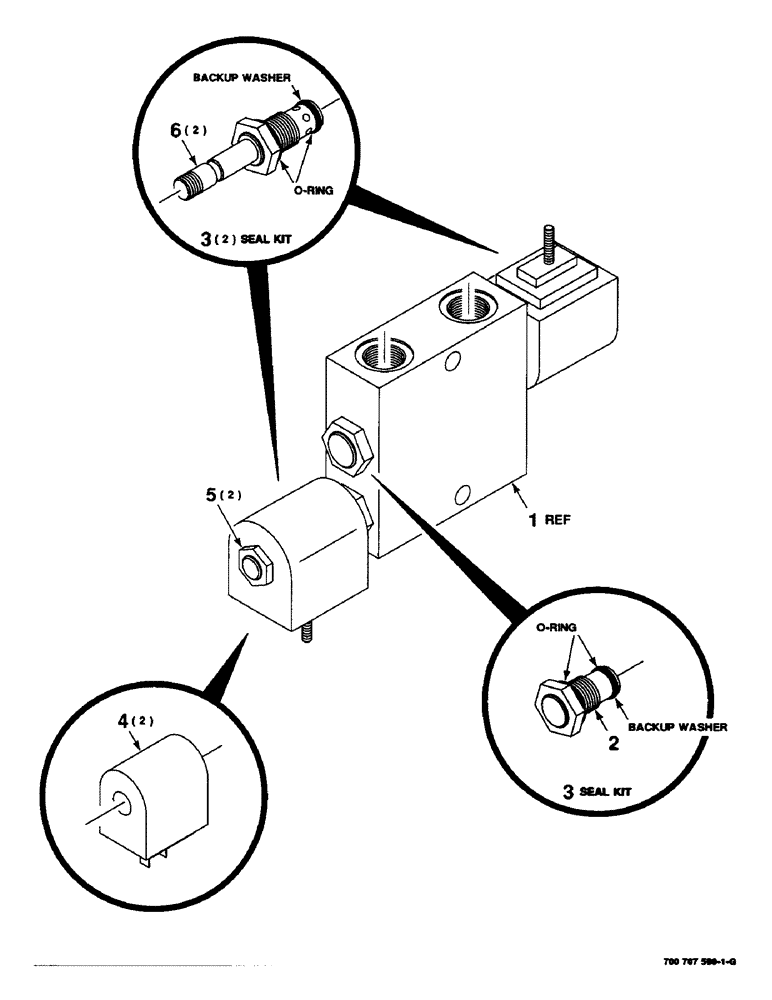

Схема запчастей Case IH 8820 - (9-116) - VALVE ASSEMBLY, CONTROL, REEL LIFT, 700707590 VALVE ASSEMBLY, CONTROL, REEL LIFT COMPLETE (35) - HYDRAULIC SYSTEMS
3
2
6
3
5
4
1

Артикул

Название

Примечание

Количество

1

700707590

CONTROL VALVE

VALVE ASSEMBLY - control, complete

1шт.

2

700707832

VALVE PRESSURE RELIE

CHECK VALVE ASSEMBLY

1шт.

3

700706154

SEAL KIT

3шт.

4

700706149

COIL

ASSEMBLY

2шт.

5

700706151

NUT

2шт.

6

700706153

HYDRAULIC VALVE

CARTRIDGE

2шт.

Выбрано товаров: 6
