(9-114) - ACCUMULATOR ASSEMBLY, HYDRAULIC, 700712632 ACCUMULATOR ASSEMBLY, HYDRAULIC COMPLETE

Запчасти Case IH 8820 (9-114) - ACCUMULATOR ASSEMBLY, HYDRAULIC, 700712632 ACCUMULATOR ASSEMBLY, HYDRAULIC COMPLETE (35) - HYDRAULIC SYSTEMS

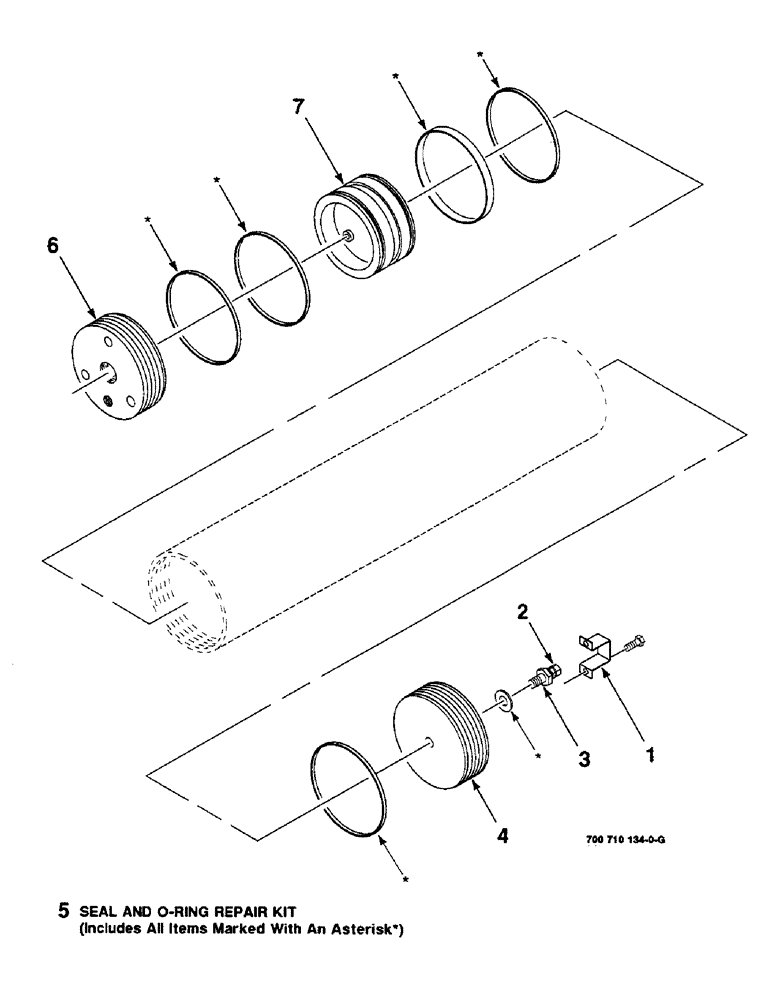

Схема запчастей Case IH 8820 - (9-114) - ACCUMULATOR ASSEMBLY, HYDRAULIC, 700712632 ACCUMULATOR ASSEMBLY, HYDRAULIC COMPLETE (35) - HYDRAULIC SYSTEMS
6
1
5
4
2
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712632

ACCUMULATOR

ASSEMBLY - hydraulic complete

1шт.

1

1341920C1

PROTECTOR

- valve

1шт.

2

1978143C1

PISTON

CORE - gas valve

1шт.

3

192900A1

VALVE

- gas

1шт.

4

700712652

CAP

- gas

1шт.

5

1341919C1

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.

6

700712651

CAP

- hydraulic

1шт.

7

S301364

PISTON

1шт.

Выбрано товаров: 8
