Запчасти Case IH 8820 (9-112) - HYDRAULIC ASSEMBLY, REEL LIFT AND ACCUMULATOR (35) - HYDRAULIC SYSTEMS

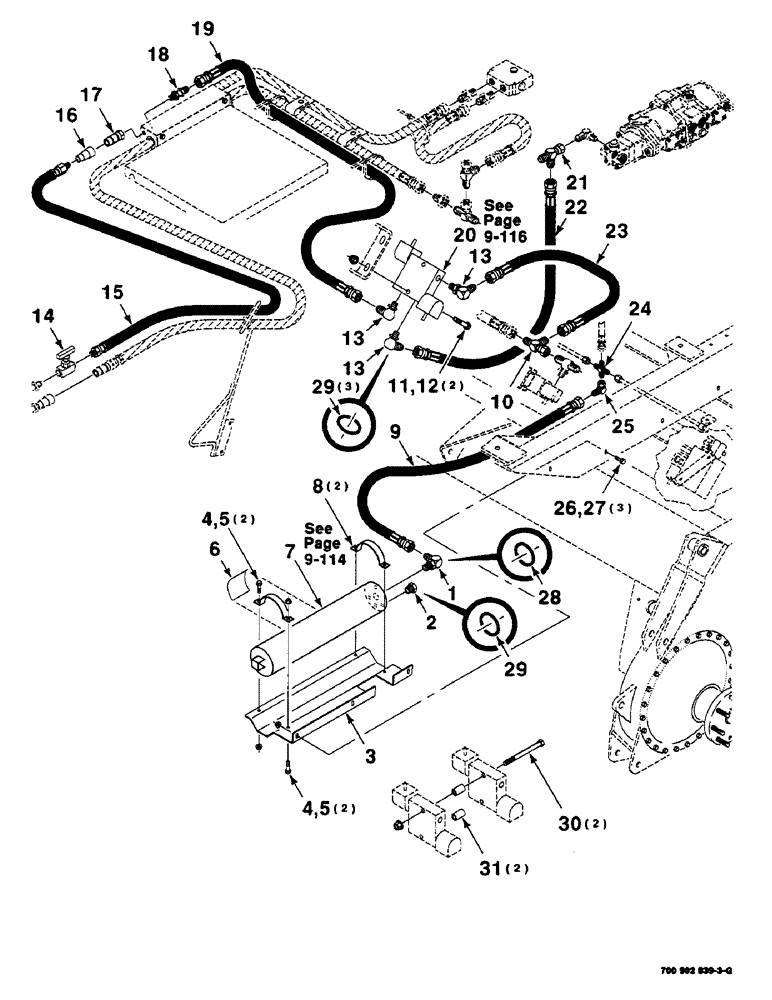

Схема запчастей Case IH 8820 - (9-112) - HYDRAULIC ASSEMBLY, REEL LIFT AND ACCUMULATOR (35) - HYDRAULIC SYSTEMS
15
24
6
4
1
26
13
22
20
19
13
23
27
29
31
16
8
13
5
21
30
9
25
14
5
2
17
12
29
7
18
4
11
3
10
28

Артикул

Название

Примечание

Количество

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. item 28) 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

2

7746456

PLUG

(Includes item 29)

1шт.

3

700124484

CHANNEL

- mounting

1шт.

4

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

4шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

6

700711651

DECAL

- accumulator

1шт.

7

700712632

ACCUMULATOR

ASSEMBLY - hydraulic

1шт.

8

700124485

STRAP

2шт.

9

700711904

HYDRAULIC HOSE,19.05 mm ID x 1300.00 mm, SAE 100R2

19.05 mm ID x 1300.00 mm, SAE 100R2

1шт.

10

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - elbow (Includes item 29)

3шт.

14

700711345

VALVE

1шт.

15

742502

HOSE

- hydraulic

1шт.

16

700707515

QUICK MALE COUPLING

COUPLING

1шт.

17

700707479

HYD CONNECTOR

NIPPLE

1шт.

18

31-2037

ADAPTER

1шт.

19

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

6.35 mm ID x 1525.00 mm

1шт.

20

700707590

CONTROL VALVE

VALVE

1шт.

21

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

22

700707731

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

23

7872864

HOSE ASSY.

HOSE - hydraulic

1шт.

24

700701795

HYD CONNECTOR

FITTING - tee

1шт.

25

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

26

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

3шт.

27

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

3шт.

28

738484

O-RING

1шт.

29

738468

O-RING

4шт.

30

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

.375 X 4 UNC GR5 YZD

2шт.

31

6595516

SPACER

2шт.

Выбрано товаров: 31
