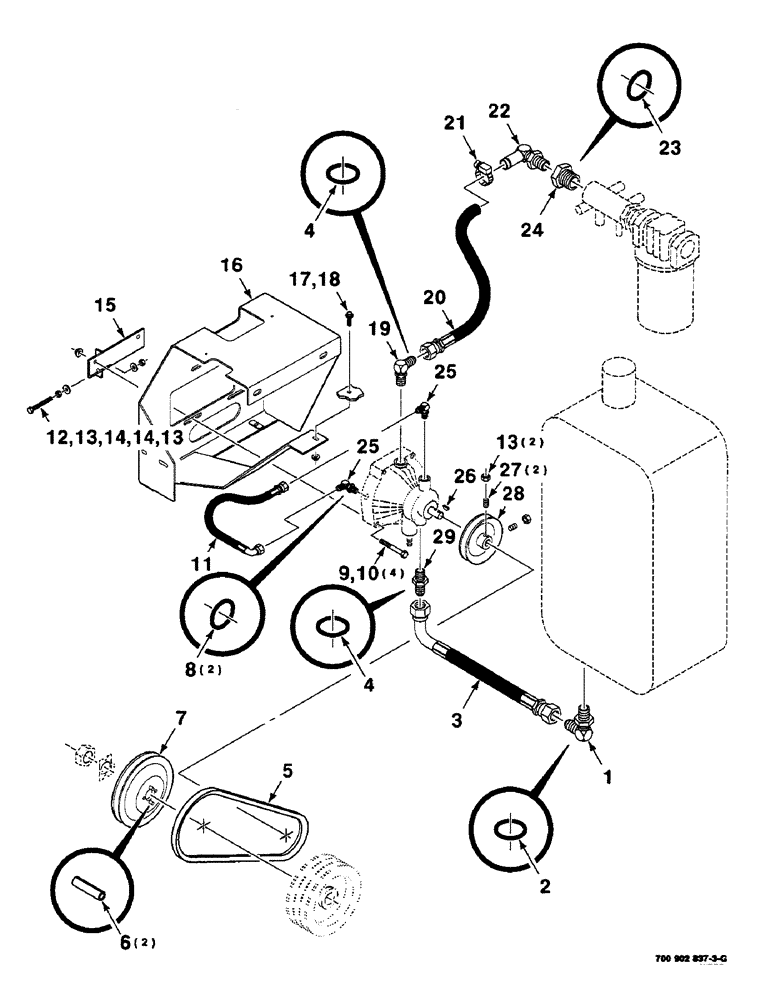

Запчасти Case IH 8820 (9-076) - PUMP ASSEMBLY, REEL DRIVE (35) - HYDRAULIC SYSTEMS

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. item 2) 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

2

738484

O-RING

1шт.

3

700709802

RIGID TUBE

HOSE - hydraulic

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

5

857938

V-BELT,0.63" W x 46.50" L

1шт.

6

700710281

LOCK PIN,5/16" x 3/4", Slotted

PIN, LOCK, 5/16" x 3/4", Slotted

2шт.

7

700121398

SHEAVE

ARM. - drive (Includes item 6)

1шт.

8

738468

O-RING

2шт.

9

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

11

700709791

RIGID TUBE

HOSE - hydraulic

1шт.

12

7773930

BOLT

5/16-18 X 2 FTC

1шт.

13

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

14

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

15

700121100

STOP

- cable

1шт.

16

700121861

SUPPORT

WA - pump

1шт.

17

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree (Incl. item 4)

1шт.

20

700710286

HYDRAULIC HOSE,19.05 mm ID x 1600.00 mm, TYPE 100R1 SAE J517

19.05 mm ID x 1600.00 mm, TYPE 100R1 SAE J517

1шт.

21

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

1шт.

22

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degrees

1шт.

23

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

24

8746521

REDUCER

(Includes item 23)

1шт.

25

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (Includes item 8)

2шт.

26

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

27

83-13112

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16-18 X 3/4 CPHSSS

2шт.

28

7053929

SHEAVE

1шт.

29

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Straight (Includes item 4) 1 1/16"-12, 37º x 7/8"-14, O-Ring

1шт.
