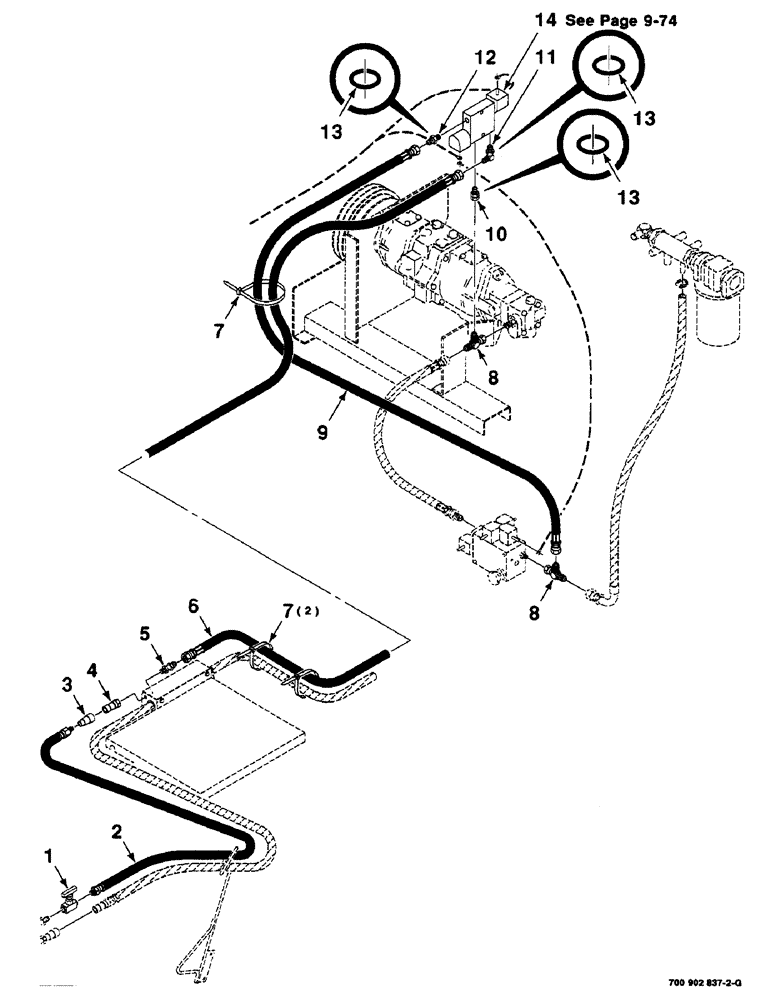

Запчасти Case IH 8820 (9-072) - HYDRAULIC ASSEMBLY, REEL LIFT, TRACTOR (35) - HYDRAULIC SYSTEMS

1

700711345

VALVE

1шт.

2

742502

HOSE

- hydraulic

1шт.

3

700707515

QUICK MALE COUPLING

COUPLING

1шт.

4

700707479

HYD CONNECTOR

NIPPLE

1шт.

5

31-2037

ADAPTER

1шт.

6

700706300

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

8

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

2шт.

9

700707610

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

10

700701791

ADAPTER

(Includes item 13)

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (Includes item 13)

1шт.

12

7846660

CONNECTION

CONNECTOR (Includes item 13)

1шт.

13

738468

O-RING

3шт.

14

700707590

CONTROL VALVE

VALVE - control

1шт.
