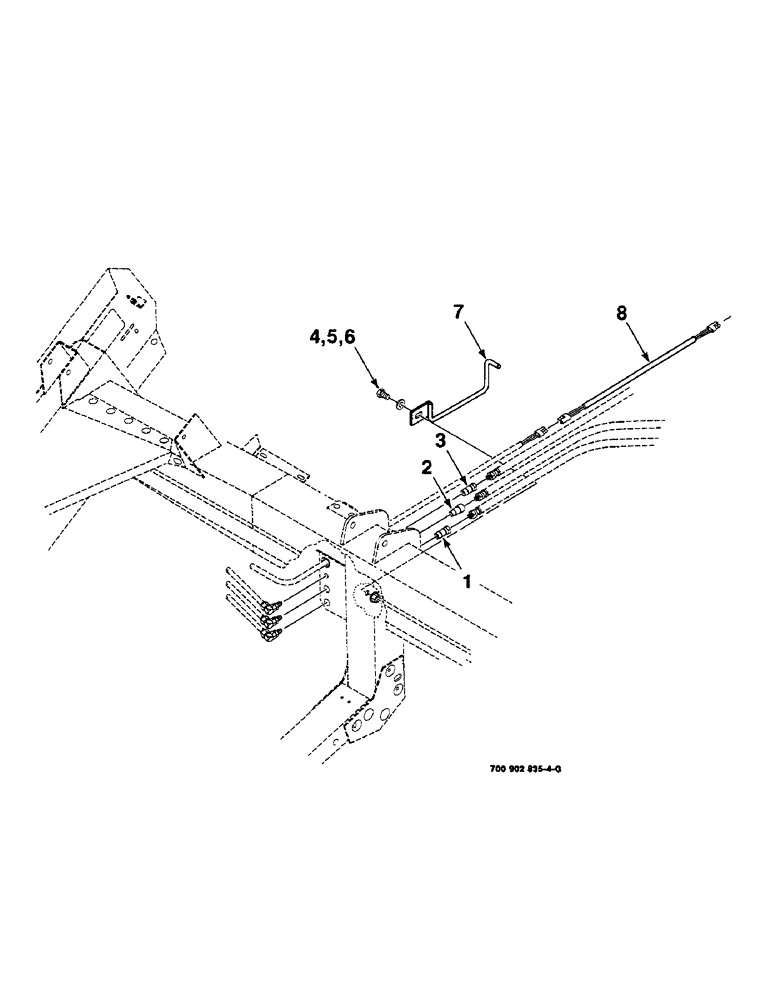

Запчасти Case IH 8820 (9-066) - HYDRAULIC ASSEMBLY, REEL LIFT (35) - HYDRAULIC SYSTEMS

1

1-7141

FITTING

NIPPLE - quick disconnect

1шт.

2

H436396

COUPLING

- quick disconnect

1шт.

3

700707479

HYD CONNECTOR

NIPPLE

1шт.

4

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8-11 X 1 C

1шт.

5

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

6

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

7

700124670

ROD

WA

1шт.

8

700706637

FLEXIBLE HOSE

HARNESS - wire

1шт.
