(8-16) - HYD. CYL. ASSEMBLY, REEL, SLAVE, 700714179 HYD. CYL. ASSEMBLY COMPLETE, 1" BORE X 9-3/8" STROKE

Запчасти Case IH 8820 (8-16) - HYD. CYL. ASSEMBLY, REEL, SLAVE, 700714179 HYD. CYL. ASSEMBLY COMPLETE, 1" BORE X 9-3/8" STROKE (35) - HYDRAULIC SYSTEMS

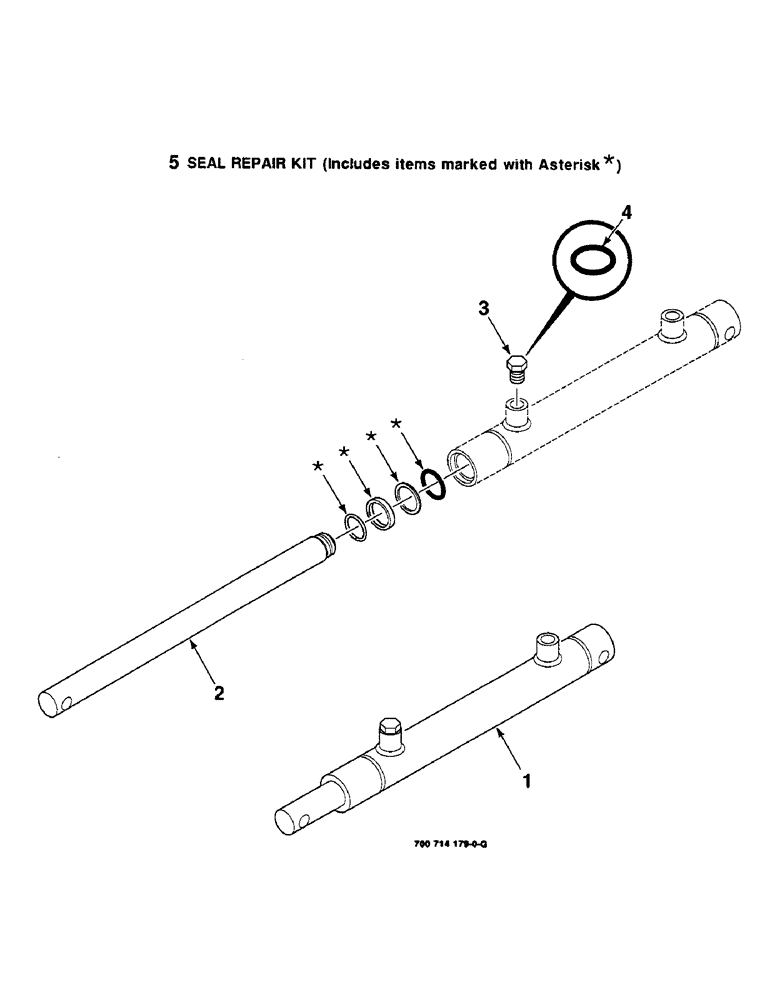

Схема запчастей Case IH 8820 - (8-16) - HYD. CYL. ASSEMBLY, REEL, SLAVE, 700714179 HYD. CYL. ASSEMBLY COMPLETE, 1" BORE X 9-3/8" STROKE (35) - HYDRAULIC SYSTEMS
*
4
5
3
2
*
*
1
*
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714179

CYLINDER,Double Acting, 25.4mm Rod, 238.12mm Stroke

HYDRAULIC CYLINDER COMPLETE (1 Inch bore x 9-3/8 inch stroke)

1шт.

2

700714208

ROD

- piston

1шт.

3

7746456

PLUG

(Includes item 4)

1шт.

4

738468

O-RING

1шт.

5

700714207

SEAL PACKAGE

SEAL AND O-RING REPAIR KIT

1шт.

Выбрано товаров: 5
