(8-14) - HYD. CYL. ASSEMBLY, REEL, MASTER, 700714178 HYD. CYL. ASSEMBLY COMPLETE, 1-1/2" BORE X 9-3/8" STROKE

Запчасти Case IH 8820 (8-14) - HYD. CYL. ASSEMBLY, REEL, MASTER, 700714178 HYD. CYL. ASSEMBLY COMPLETE, 1-1/2" BORE X 9-3/8" STROKE (35) - HYDRAULIC SYSTEMS

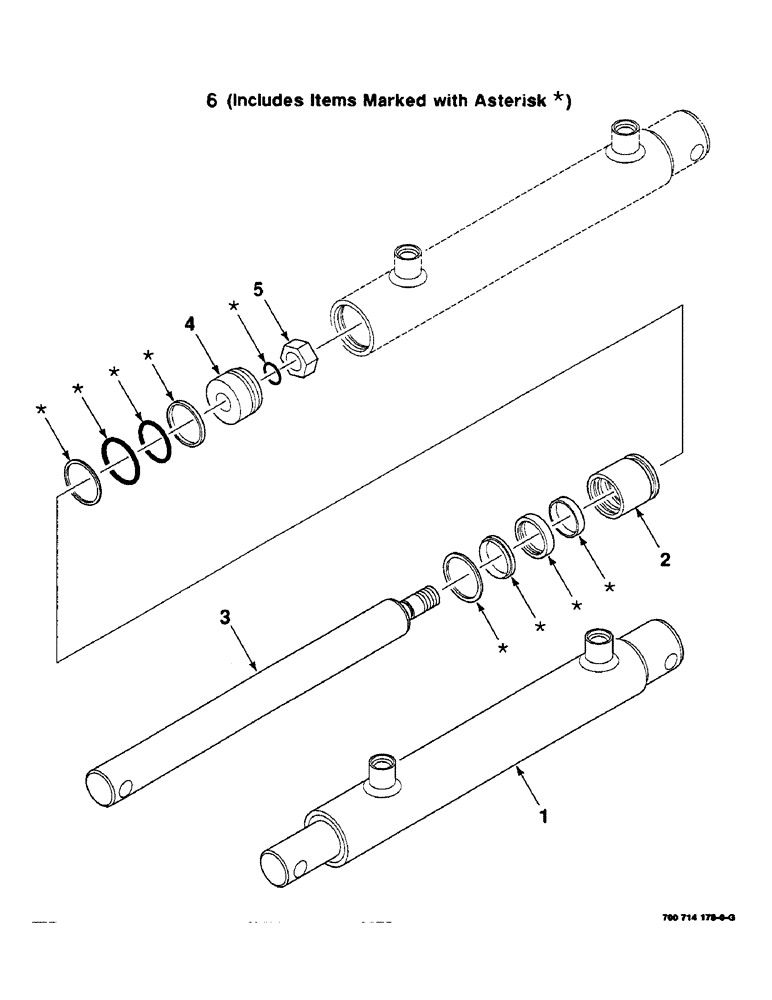

Схема запчастей Case IH 8820 - (8-14) - HYD. CYL. ASSEMBLY, REEL, MASTER, 700714178 HYD. CYL. ASSEMBLY COMPLETE, 1-1/2" BORE X 9-3/8" STROKE (35) - HYDRAULIC SYSTEMS
6
*
*
2
*
*
5
1
*
3
*
*
4
*
*
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714178

CYLINDER,Double Acting, 28.58mm Rod, 238.12mm Stroke

HYDRAULIC CYLINDER COMPLETE (1-1/2 Inch bore x 9-3/8 inch stroke)

1шт.

2

700714206

GUIDE

HEAD

1шт.

3

700714205

ROD

- piston

1шт.

4

700714203

PISTON

1шт.

5

700714202

NUT

- lock

1шт.

6

700714201

SEAL PACKAGE

SEAL AND O-RING REPAIR KIT

1шт.

Выбрано товаров: 6
