(8-12) - HYD. CYL. ASSEMBLY, REEL, MASTER, 700709507 HYD. CYL. ASSEMBLY COMPLETE, 1-1/2" BORE X 9-3/8" STROKE

Запчасти Case IH 8820 (8-12) - HYD. CYL. ASSEMBLY, REEL, MASTER, 700709507 HYD. CYL. ASSEMBLY COMPLETE, 1-1/2" BORE X 9-3/8" STROKE (35) - HYDRAULIC SYSTEMS

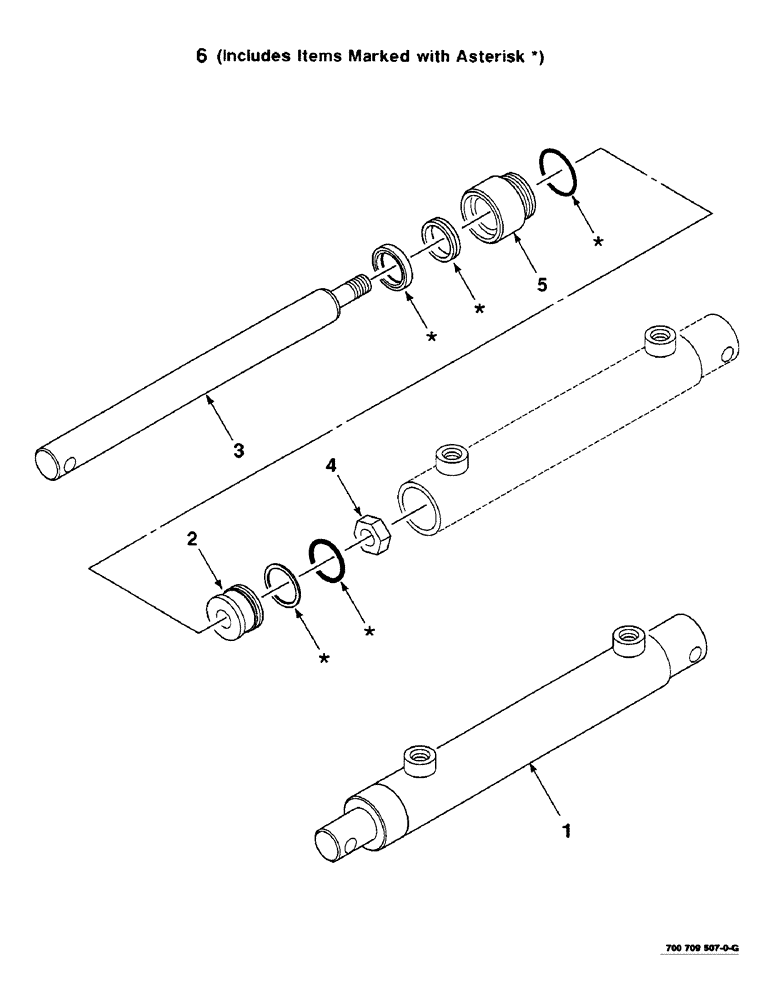

Схема запчастей Case IH 8820 - (8-12) - HYD. CYL. ASSEMBLY, REEL, MASTER, 700709507 HYD. CYL. ASSEMBLY COMPLETE, 1-1/2" BORE X 9-3/8" STROKE (35) - HYDRAULIC SYSTEMS
*
*
6
2
*
4
*
3
1
5
*
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714178

CYLINDER,Double Acting, 28.58mm Rod, 238.12mm Stroke

HYDRAULIC CYLINDER COMPLETE (1-1/2 Inch bore x 9-3/8 inch stroke)

1шт.

2

700708856

PISTON

1шт.

3

700708854

PISTON ROD

ROD - piston

1шт.

4

7738248

NUT

1шт.

5

700709510

CYLINDER HEAD

HEAD

1шт.

6

700709511

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.
