(8-10) - HYD. CYL. ASSEMBLY, REEL, SLAVE, 700711370 HYD. CYL. ASSEMBLY COMPLETE, 1" BORE X 9-3/8" STROKE

Запчасти Case IH 8820 (8-10) - HYD. CYL. ASSEMBLY, REEL, SLAVE, 700711370 HYD. CYL. ASSEMBLY COMPLETE, 1" BORE X 9-3/8" STROKE (35) - HYDRAULIC SYSTEMS

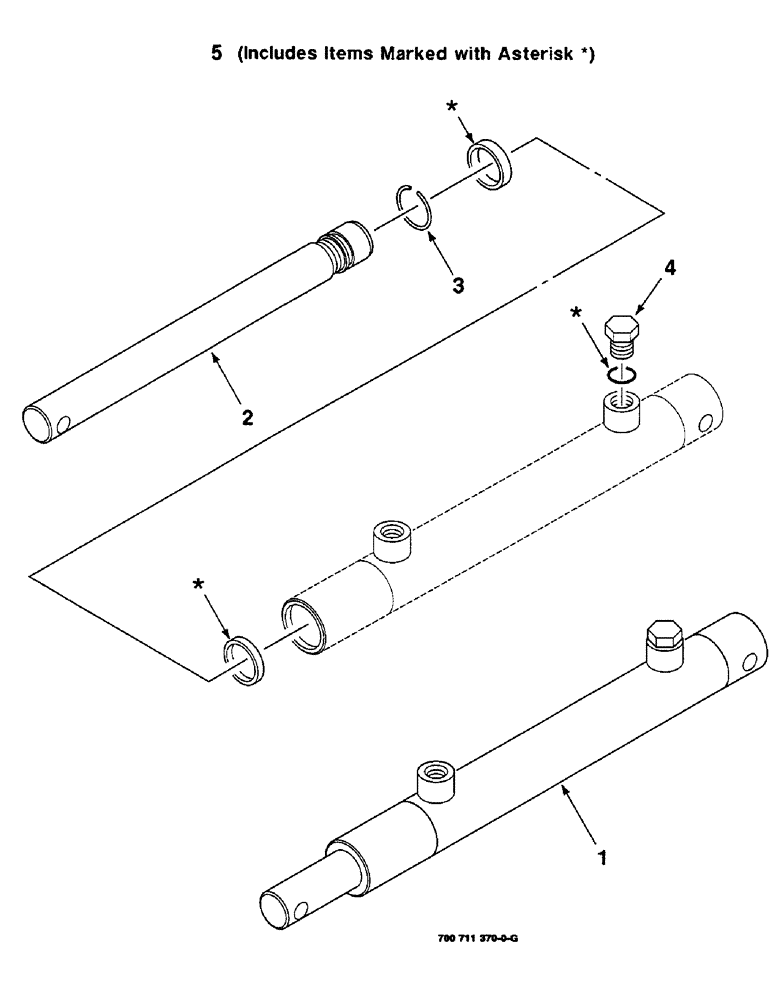

Схема запчастей Case IH 8820 - (8-10) - HYD. CYL. ASSEMBLY, REEL, SLAVE, 700711370 HYD. CYL. ASSEMBLY COMPLETE, 1" BORE X 9-3/8" STROKE (35) - HYDRAULIC SYSTEMS
*
3
5
*
2
*
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700711370

CYLINDER

HYDRAULIC CYLINDER COMPLETE (1 Inch bore x 9-3/8 inch stroke)

1шт.

2

700708850

PISTON ROD

ROD - piston

1шт.

3

700708852

LOCKING RING

RING - retainer

1шт.

4

7746456

PLUG

1шт.

5

700709509

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.
