Запчасти Case IH 8820 (8-08) - HYDRAULIC ASSEMBLY, REEL LIFT (35) - HYDRAULIC SYSTEMS

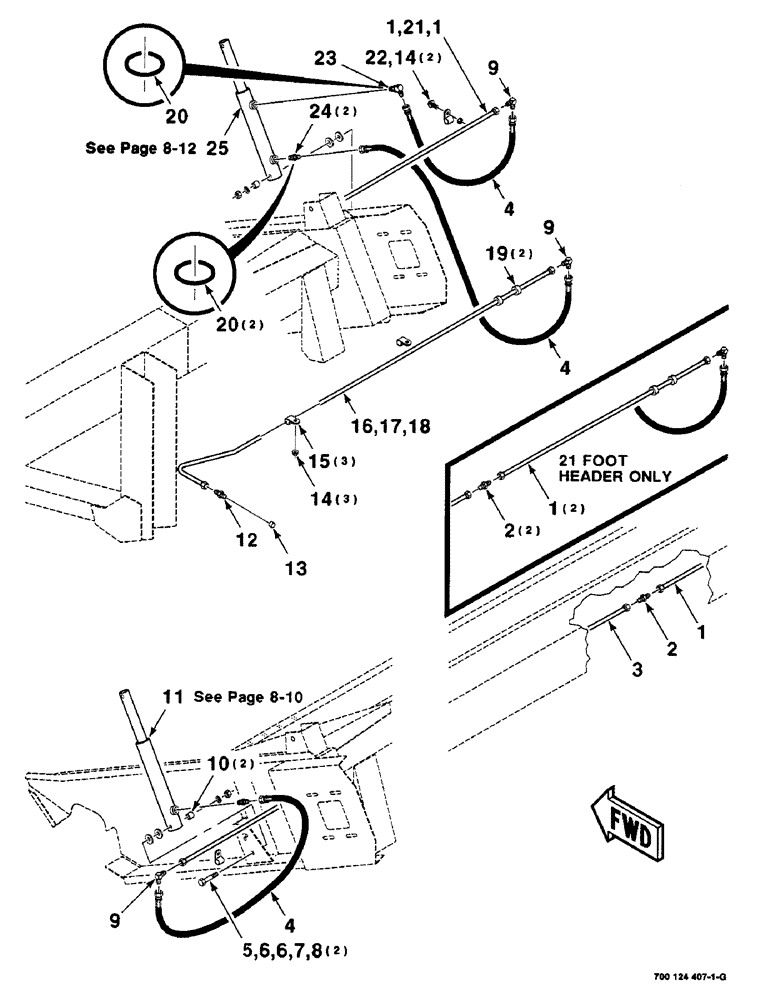

Схема запчастей Case IH 8820 - (8-08) - HYDRAULIC ASSEMBLY, REEL LIFT (35) - HYDRAULIC SYSTEMS
20
3
25
6
11
1
15
2
5
2
17
14
22
20
21
14
4
9
7
12
4
16
8
18
9
1
1
9
6
19
13
1
24
4
23
10

Артикул

Название

Примечание

Количество

1

700708234

TUBE,9.52 mm OD, 2200 mm Length

LINE - hydraulic

5шт.

2

846477

UNION

FITTING - union

3шт.

3

700707728

FLEXIBLE HOSE

LINE - hydraulic (15 & 18 Foot only)

1шт.

4

700707500

FLEXIBLE HOSE

HOSE - hydraulic

3шт.

5

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

6

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

FITTING - elbow

3шт.

10

6389555

BUSHING

SPACER

2шт.

11

700711370

CYLINDER

- hydraulic (S.N. CFH0030159 thru CFH0030454)

1шт.

700714179

CYLINDER,Double Acting, 25.4mm Rod, 238.12mm Stroke

- hydraulic (S.N. CFH0030455 and later)

1шт.

12

31-2037

ADAPTER

FITTING - adapter

1шт.

13

46383

CAP - 1/4 NPT

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

15

700708090

CLAMP

- line

3шт.

16

700711884

TUBE

LINE - hydraulic (15 Foot)

1шт.

17

700711885

TUBE

LINE - hydraulic (18 Foot)

1шт.

18

700711886

TUBE

LINE - hydraulic (21 Foot)

1шт.

19

248-13101

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

2шт.

20

738468

O-RING

3шт.

21

700707573

FLEXIBLE HOSE

LINE - hydraulic (18 Foot)

1шт.

22

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. item 20) 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector (Incl. item 20)

2шт.

25

700714178

CYLINDER,Double Acting, 28.58mm Rod, 238.12mm Stroke

- hydraulic (S.N. CFH0030159 thru CFH0030454)

1шт.

700714178

CYLINDER,Double Acting, 28.58mm Rod, 238.12mm Stroke

- hydraulic (S.N. CFH0030455 and later)

1шт.

Выбрано товаров: 27
