Запчасти Case IH 8820 (9-120) - U-JOINT ASSEMBLY, 700711897 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

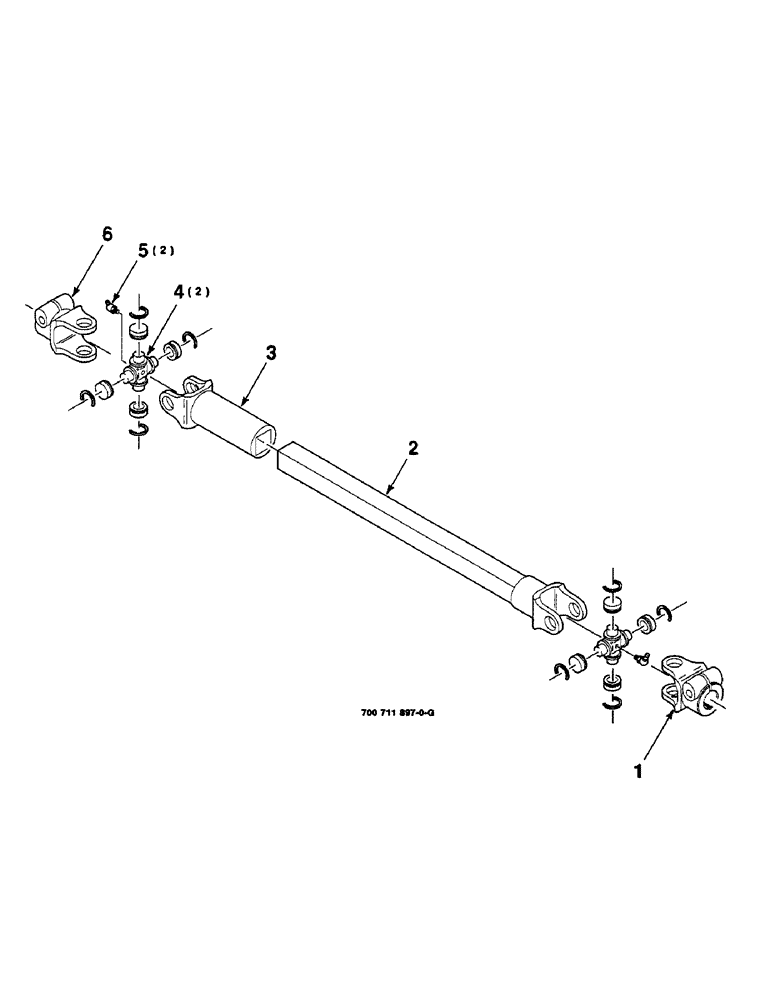

Схема запчастей Case IH 8820 - (9-120) - U-JOINT ASSEMBLY, 700711897 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
5
2
3
1
4
6

Артикул

Название

Примечание

Количество

700711897

SHAFT ASSY.

U-JOINT ASSEMBLY COMPLETE

1шт.

1

700711271

FORK

YOKE - clamp

1шт.

2

700704954

YOKE

AND SHAFT

1шт.

3

700704955

YOKE

1шт.

4

757443

U-JOINT SPIDER

CROSS AND BEARING KIT (Includes item 5)

2шт.

5

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ZERK 1/8-27 X 65 DEGREES

2шт.

6

700700842

LINKAGE YOKE

YOKE - clamp

1шт.

Выбрано товаров: 7
