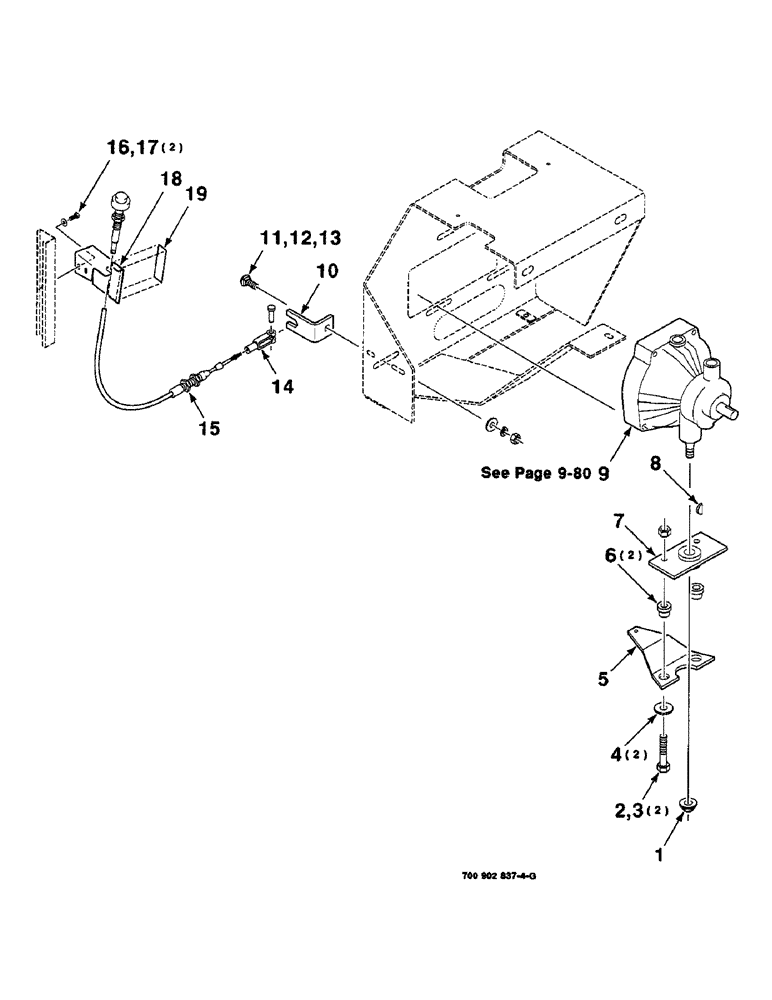

Запчасти Case IH 8820 (9-078) - PUMP CONTROL ASSEMBLY, REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

3

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

4

700111084

WASHER

2шт.

5

700121114

ARM

- pump

1шт.

6

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING

2шт.

7

700121128

BAR

WA

1шт.

8

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1/8 X 3/4 WOODRUFF KEY

1шт.

9

700709792

HYDRAULIC PUMP

PUMP - variable

1шт.

700709792R

REMAN-HYD PUMP

8820, 8830 S/N CFH0030159 & Aft., 8840

1шт.

700709792C

CORE-HYDRAULIC PUMP

Return Number

1шт.

10

700120673

SUPPORT

- draper drive

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X1 RHSNB

1шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

356174C91

FORK

CLEVIS

1шт.

15

700709788

CABLE

ASSEMBLY - control

1шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

18

700122474

SUPPORT

ASSEMBLY (Includes item 19)

1шт.

19

700709452

DECAL

- reel speed

1шт.
